Brand:concrete reinforcing mesh
Model:concrete reinforcing mesh
MOQ:100000 Square Met

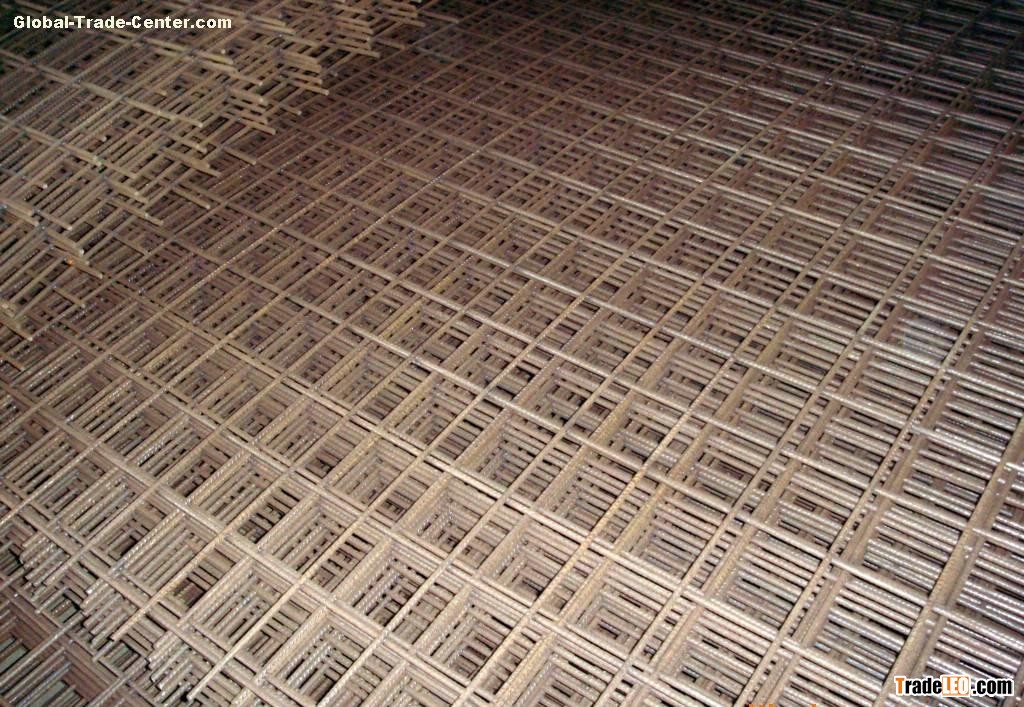

Reinforcement mesh is a welded wire fabric, prefabricated steel reinforcement material. It has a rectangular or square reinforcement mesh grid pattern and is produced in flat sheets.
The wire used in our reinforcing mesh has a ribbed profile. This ribbed profile creates improves bonding to concrete, which when compared to smooth wire profiles, minimizes any concrete cracking that may occur as a result of concrete shrinkage.
Our reinforcing mesh is with a 500mpa tensile strength and suitable for use in a variety of applications including:
- Concrete footpaths
- Industrial and commercial ground slabs
- Precast Panel construction
- Residential slabs and footings
Standard reinforcing mesh sizes are 6.0m x 2.4m for the SL and RL range of products.
Rectangular Rib Mesh Standard Sheets - 6 m (length) x 2.4 m (width) = 14.4m2
| Reference No | Standard Unit | Longitudinal Wires (mm) | Cross Wires (mm) | Mass (kg) |
| RL1218 | Sheet | 11.9 @ 100 | 7.60 @ 200 | 157 |
| RL1118 | Sheet | 10.7 @ 100 | 7.60 @ 200 | 131 |
| RL1018 | Sheet | 9.5 @ 100 | 7.60 @ 200 | 109 |
| RL918 | Sheet | 8.6 @ 100 | 7.60 @ 200 | 94 |
| RL818 | Sheet | 7.6 @ 100 | 7.60 @ 200 | 79 |
| RL718 | Sheet | 6.75 @ 100 | 7.60 @ 200 | 68 |
Square Rib Mesh Standard Sheet - 6 m (length) x 2.4 m (width) = 14.4m2
| Reference No | Standard Unit | Longitudinal Wires (mm) | Cross Wires (mm) | Edge Wires (mm) | Mass (kg) |
| SL81 | Sheet | 7.6 @ 100 | 7.6 @100 | - | 105 |
| SL102 | Sheet | 9.5 @ 200 | 9.50 @ 200 | 6.75 @ 100 | 80 |
| SL92 | Sheet | 8.6 @ 200 | 8.60 @ 200 | 6 @ 100 | 66 |
| SL82 | Sheet | 7.6 @ 200 | 7.60 @ 200 | 5.37 @ 100 | 52 |
| SL72 | Sheet | 6.75 @ 200 | 6.75 @ 200 | 4.77 @ 100 | 41 |
| SL62 | Sheet | 6 @ 200 | 6 @ 200 | 4.77 @ 100 | 33 |
| SL52 | Sheet | 5 @ 200 | 4.77 @ 200 | 4.77 @ 100 | 21 |
