Gabion cage made from a hexagonal double twisted wire mesh with the mesh type 80x100mm and 100x120mm with the heavily galvanized wire and Galfan wire (ZINC -95%,ALUMINIUM -5%) / super galfan wire(ZINC -90%,ALUMINIUM -10%)

Gabion cage are filled with natural stones at the project site to form flexible, permeable, monolithic structures such as Retaining walls, sea walls, channel lining, revetments, and wires for erosion control projects.
The diaphragm assure minimum stone migration within the basket, thus gives strength to the container to retain its original shape and does not unravel or unzip in adverse conditions. Woven units can also be easily amended on site and shaped to suit project requirements.

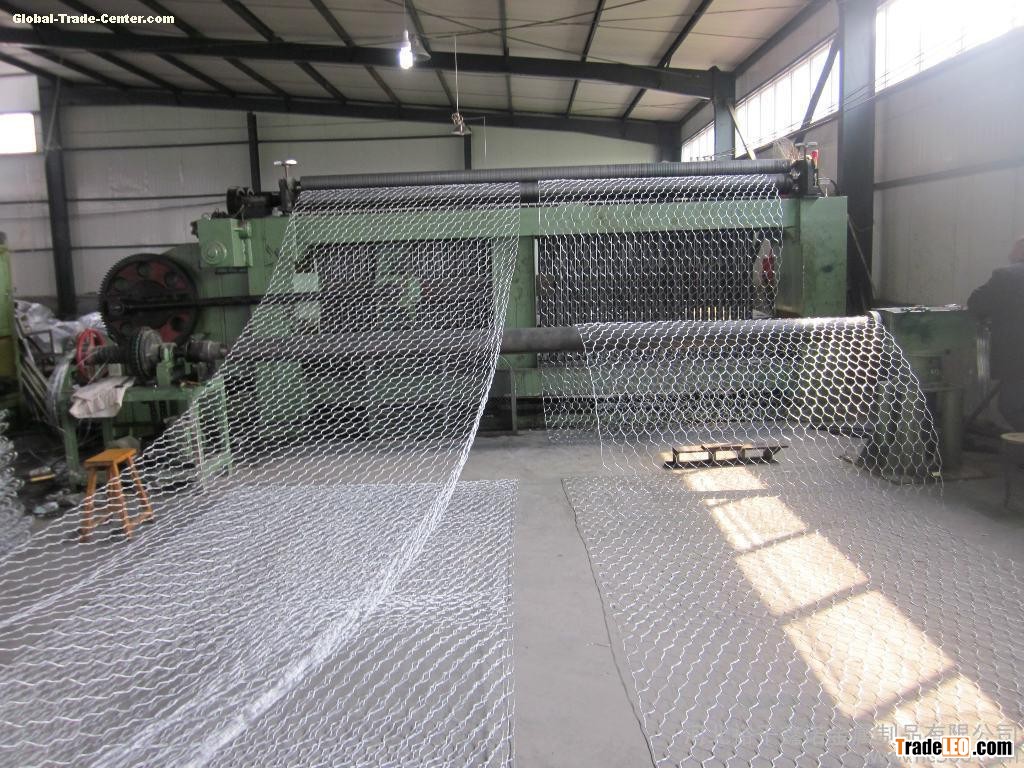

Gabion basket Manufacturing
The gabions shall be manufactured from double twist hexagonal woven wire mesh in accordance with EN10223-3
Gabion Mesh size
The mesh openings should be hexagonal and of nominal dimension of 60x80mm/80x100mm/100x120mm and conform to EN 10223-3
Gabion Mesh wire
The nominal mesh wire for the body of the gabion should be 2.7mm in diameter and of a nominal 3.4mm for the selvedge wire.Both the body wire,selvedge wire and lacing wire should be in accordance with EN 10218-2 and EN 10223-3
Gabion CORROSION PROTECTION
Zinc galvanized to EN 10244-2 Class A 2.7mm(245g/m2) / 3.4mm(265g/m2) / 2.2mm(230g/m2)
Gabion JOINTING
All jointing and connections should be formed with continuous 2.2mm zinc galvanized wire or high tensile 3mm diameter zinc galvanized “C” rings.
Gabion DIAPHRAGMS
Flexd as 1m c/c across the gabion width for all gabions equal to or greater than 2m in length
Gabion basket Material:

Hot dipped galvanized wire

Galfan wire

Galfan is another type of galvanizing coating that has a small percentage of aluminium added(5%AL + 95%ZN or 10%AL + 90% ZN) and is considered to perform better than standard galvanizing.
Super galfan coating()10%AL+90%ZN)/+pvc coating

Galfan coating(5%AL+95%ZN)/+pvc coating
