Brand:weili
Model:LBZ2000PC
MOQ:1 Sets

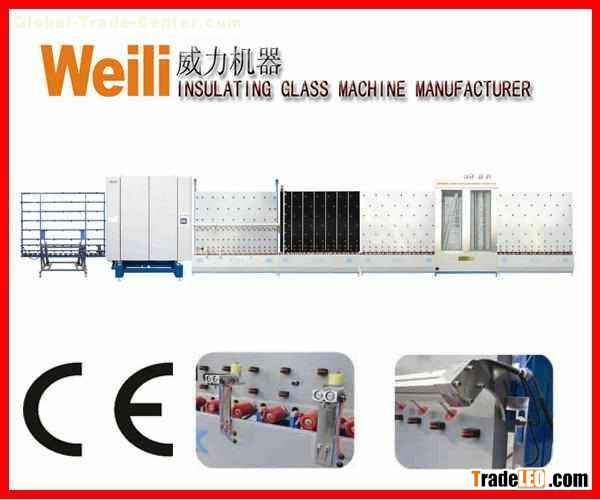

LBZ2000PC Vertical automatic insulating glass outside assembly flat press production line
1 this machine panel is made of steel with special paint which can protect our machine from corrosion
2 with the function of assembling outside
3 low-e glass automatic diagnosis system
4 adopt oil water-proof bearing in the washing section
5 produce double glazing and triple glazing insulating glass
6 hydraulic pressure provides power for plate press section, able be open 450mm for maintenance
Main technical parameter
| Technical Parameter | LBZ1800PCVertical automatic insulating glass outside assembly flat press production line | LBZ2000PCVertical insulating glass automatic flat press production line
| LBZ2200PCVertical insulating glass automatic flat press production line
| LBZ2500PCVertical insulating glass automatic flat press production line
|
| Min glass size | 280*450mm | 280*450mm | 280*450mm | 280*450mm |
| Max glass size | 1800*2500 | 2000*2500mm | 2200*3000 | 2500*3000 |
| Washing glass speed | 0-8m/min
| 0-8m/min
| 0-8m/min
| 0-8m/min
|
| Power supply | 380V/50HZ 19.5KW | 380V/50HZ 19.8KW | 380V/50HZ 28.6KW | 380V/50HZ 38KW |
| Insulating max glass thickness | 40 mm
| 40 mm
| 40 mm
| 40 mm
|
| Transmission glass speed | 45 m/min
| 45 m/min
| 45 m/min
| 45 m/min
|
| Air pressure | 1Mpa | 1Mpa | 1Mpa | 1Mpa |
