Brand:Titan
Model:Y83
MOQ:1 Sets
1, Product listing：
Hydraulic scrap metal briquetting press Y83-6300
2, Application

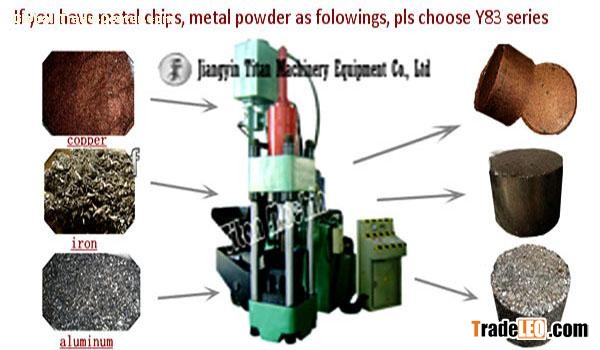

Y83 series briquetting presses (also called metal shavings compressor) can cold press the scrap iron, steel, aluminum and other metals into cylindrical briquettes with the density of about 5-6 ton per square meter and the briquettes are able to be directly melt for reproducing. The machine can help you to reduce the loss when reproduce the burning loss in smelting so to make recycling and smelting easier and convenient, and the briquette can substitute the pig iron as raw material directly. We offer you totally 9 different types with different working force from 200 tons to 630 tons.
3, Features:
a, Fluid drive endows Y83 series with small size, light weight, low noise, high efficiency and many other advantages comparing to traditional mechanical drive.
b, Y83 provides option of auto and manual operation system. The tandem hydraulic cylinders increases the work speed and improves the production output.
c, Y83 series is designed and produced of a monothlic casting steel and this improves the stablability and longthen the machine life.
d, The electrical part adopts imported PLC automatic control system which can reduce the malfunction ratio.
e, Y83 is widely used in different fields including scrap metal recycling industry and steel factory offering you qualified products.
4, Technical parameters:
| Nominal force (kn): | 6300 kn |
| Machine size (mm) : | Main machine：2500*1100*4100 Oil box：2600*1500*2200 |
| Briquette size (mm): | Φ 130~170 mm |
| Briquette density (ton/m3) : | ≥ 5~5.5 ton/m3 |
| Briquette frequency | 4~5 pcs/min |
| Briquette weight (kg) | 6~10 kg |
| Power (kw): | 45 kw |
| Nominal pressure: | 20 Mpa |
| Operation: | Manual/Automatic |
| Output per shift: | 16~20 t/shift (8 hours) |
