1.       Brief introduction

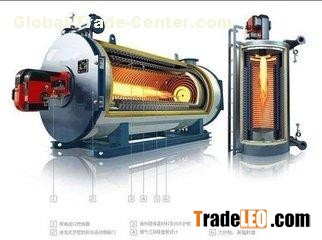

Thermal oil heater use natural gas as fuel, the thermal oil is heated on the pipe. By using the circulating pump to force the liquid circulation, transport the heat to the user equipment. At last, the hot oil returns back the thermal oil heater.

All heaters are assembly structure which is easy for installation by just connecting system device by pipes. Intelligent system control makes boiler operation easier and simpler. Controller with imitation screen display has auto igniting, burning, circulation pumps control, alarm, etc. functions.

2.       Main characters

l  High automaticity, prompt start and stop, high reliability.

l  High thermal efficiency, completely burning, stable output, better adaptability to variable load.

l  Compact structure, small area requirement.

l  Less auxiliaries, easy installation.

l  Security: The thermal oil could obtain a higher temperature in the lower operating pressure, the highest temperature up to 320°C. The actual operating pressure is atmospheric pressure, the maximum working pressure is 0.8MPa, and design pressure is 1.1Mpa.

l  Savings: It has the characteristics of high temperature and low pressure, it could reduce the pressure rating of the equipment, and could reduce the investment costs of the equipment.

l  Saving Energy: It make use of the closed-circuit forced circulation to provide heat, it couldn’t come into contact with the atmosphere, which prolongs the service life.

l  Perfect: reasonable structure, novel appearance, complete supporting facilities , comprehensive technical, courteous service.
