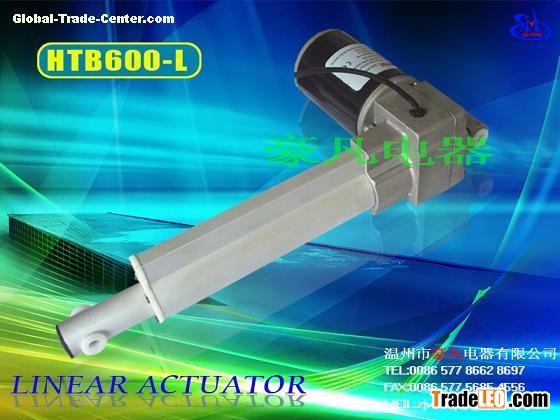

HTB600

Specifications:

Voltage: 36VDCor 12VDC 24VDC permanent magnet

Standard stroke: 100 150 200 250 300 350 400mm,(option)

<ps:The special stroke could be designed according to your request>

Load capacity:100N 3000N 6000N

No load speed:25mm/s(100N) 14mm/s(3000N) 7mm/s(6000N)

Type of duty:25%

Ambient temperature:-25°C~65°C

Protection class:IP54

Built-in limit switches,not adjustable after leave factory

Low noise design,db<53(A)

Certification:CE

Colour： Btacd or gray
