Brand:Aluminum Easy Peel Off Lid / Easy Open Ends making
Model:Aluminum Easy Peel Off Lid / Easy Open Ends making
MOQ:-0 -
Aluminum foil easy tear lid as known as safety cover, it is with widely usage. Now is main used in food package area. The inner roll design of the rings keep hand safe, make the lids easily to open, and it is lighter about 50% than common easy tear lids. No dust drops into the tubes after tear the lids. It will be high grade package way in future food and drugs package.

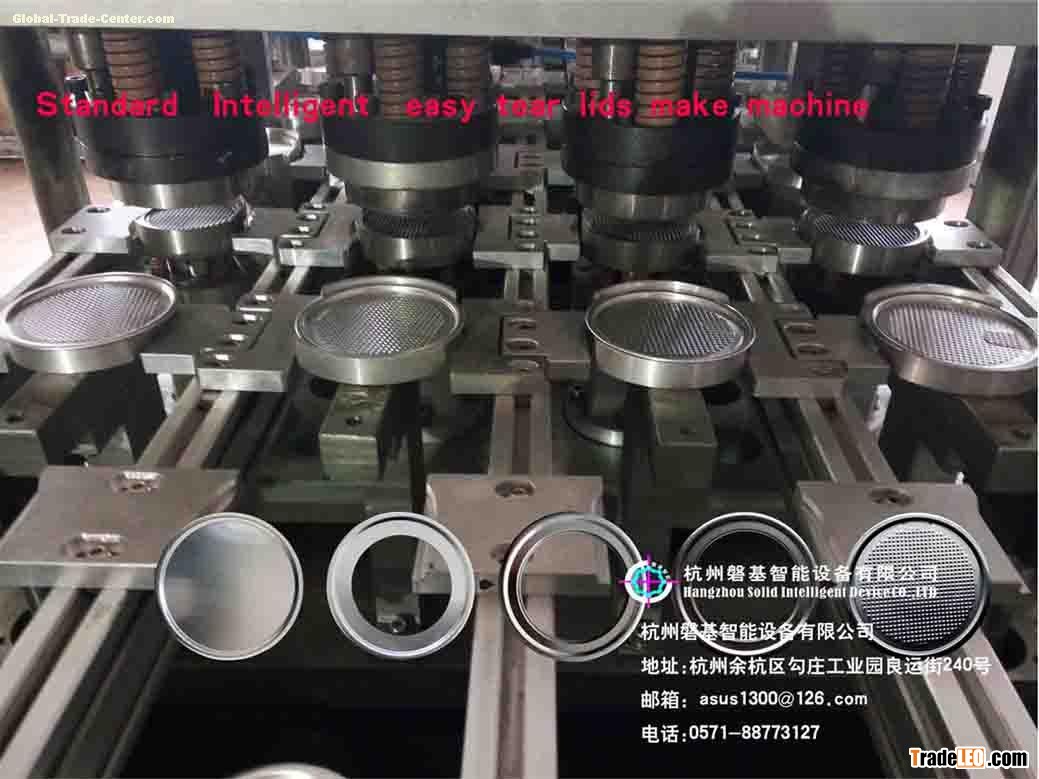

We research and produce our New-Style Intelligent easy tear lid make machine, it is with servo motor, match with pneumatic system, PLC control and temperature control, photo-electronic system. Automatically finish tin lids adding, punching, pulling, roll rim, pre heating, lids pre punching, cutting, sealing, cooling, cobwebbing press, rivet, dedusting, counting and deliver out.
Fast speed, highly automatic, our equipment is the first choice of large and middle lids maker company in domestic and abroad.
performance introduce
1. Operation system is with touch screen, can online set data and show kinds information.
2. Drive system is with abroad advanced synchronous belt, servo synchronization location driver, equilibrium seal press, precision structure and stable performance. The cutting way is with the most save way for seal film.
3. Pre-heating is with high frequency energy save way, the seal temperature is automatically controlled by single temperature control module.
Tech data
Specification：603、 502、401、307、300、209 different shape lids
Produce capacity： 90-200lids/min
Power： about 50KW(380V 50HZ)
Outer size: about 5000mmx1150mmx2400mm
Total weight: about 3500kg
Air pressure: ≥0.6Mpa
