1. Principal features

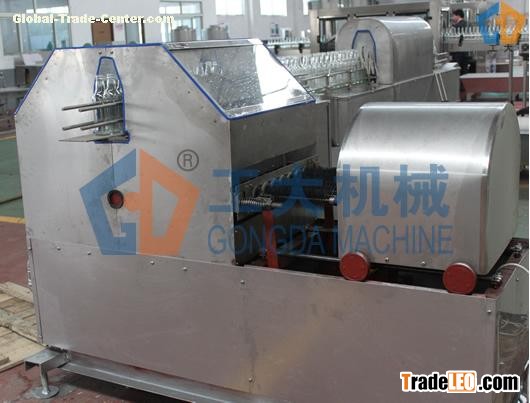

The machine contains the inner layer washing machine, the outside remove labeling machine, and the soaking machine etc. And we could dispose soaking groove and electric control system, with the characters of high efficiency of washing bottle, low bottle –broken, rate, saving water and electricity.
2. Principal parameter
| Bottle specification | Bottle outside diameter | 56-64mm |
| Bottle height | 140-220mm | |
| Production capability | | 3000-4000 b/h |
| Lnner layer washing machine | Main motor power | 1.1kw |
| Inside washing motor | 0.55kw | |
| Inside washing motor | 505r/min | |
| Pressure of water supplying | 0.3-0.4Mpa | |
| Bottle feeding speed | 7.24m/min | |
| Driver plate speed | 7.28r/min | |
| Outer size | 1750×1320×1320mm | |
| Weight | 1100kg | |
| Outside remove labeling machine | Orbit motor | 0.75kw |
| Orbit speed | 11.13r/min | |
| Outside washing motor | 0.75kw | |
| Water pump motor | 0.37kw | |
| Water consumption | 2.8m3/h | |
| Outer size | 2900×800×1350mm | |
| Weight | 600kg | |
| Steeper | Liquid temperature | 45-65oC |
| Solution concentration | 1.4% | |
| Outer size | 2400×2650×2400mm | |
| Weight | 450kg |
