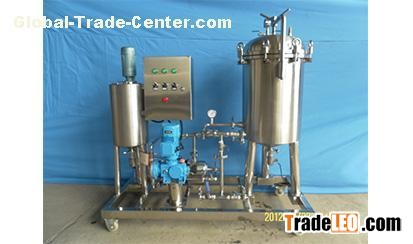

Filling/Washing /Filtration Equipment

Model: RQG-2

Filtration area: 2M2

No. Of filtration plate: 7

Filtration capacity: 1000L/h

Filter cell idameter: 400MM

Mixing tank diameter: 350mm

Max working pressure: 0.6Mpa.

Max working temp: 100℃

Filtration medium: Beer

Filtered beer turbidity: ≤0.4EBC

Kieselguhr/Diatomite consumption （kg/㎡）1～1.2

500L Vane type diatomite filter

Model: RQG-0.8

Filtration area: 0.8M2

No. Of filtration plate: 4

Filtration capacity: 500L/h

Filter cell idameter: 325MM

Mixing tank diameter: 250mm

Max working pressure: 0.6Mpa.

Max working temp: 100℃

Filtration medium: Beer

Filtered beer turbidity: ≤0.4EBC

Kieselguhr/diatomite consumption （kg/㎡）1～1.2

200L Vane type diatomite filter

Model: RQG-0.2

Filtration area: 0.4M2

No. Of filtration plate: 3

Filtration capacity: 200L/h

Filter cell idameter: 325MM

Mixing tank diameter: 219mm

Max working pressure: 0.6Mpa.

Max working temp: 100℃

Filtration medium: Beer

Filtered beer turbidity: ≤0.4EBC

Kieselguhr/diatomite consumption （kg/㎡）1～1.2
