Filling/Washing /Filtration Equipment

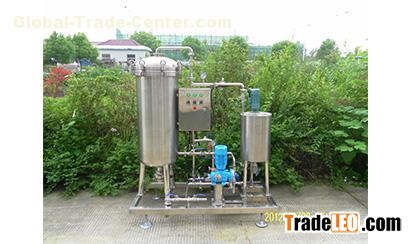

500L/h Candle type diatomite filter

Capacity: 0.5T/h

Filter element spec and quantity: Φ38×1000=11 pc

Gap: 50

Filtration area: 1.5㎡

Main pipe size: Φ51

Max working pressure: 0.6MPa

Working temp: 100 degree

Diatomite consumption: 1.0～1.4 kg/t

Filtered beer turbidity: ≤0.4EBC

Metering pump capacity/power: 0L/h  0.18kw

Beer pump power: 0.55KW

Total power: 0.82kw

5000L/h Candle type diatomite filter

Capacity: 5T/h

filter element spec and quantity: Φ38×1000=67 pc

Gap: 50

Filtration area: 8㎡

Main pipe size: Φ51

Main pipe flow speed: ≤2m/s

Max working pressure: 0.6MPa

Filtration efficiency: 6.5~7.2hL/h.㎡

Filtered beer turbidity: ≤0.4EBC

Sitr reducer power: 0.37kw

Metering pump capacity/power: 240L/h  0.37kw

Beer pump power: 3KW

Total power: 4.74kw
