3000L Unitank

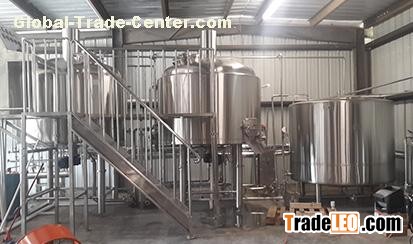

Micro Brewery

Material: 304 S/S or 316 S/S

Effective volume: 3000L

Gross volume: Min 3750L (without head space)

Insulation thickness: 100mm

Working pressure: 1-2 bar

Testing pressure: 2-3 bar

Conical bottom: 60-72 degree

Jacketed and insulated, with outer cladding

Breathe valve, pressure gauge, butterfly valve, carbonation stone

Sample valve, beer and yeast outlet.

Optional shadowless manway

1000L Fermenter/Unitank

Material: 304 S/S or 316 S/S

Effective volume: 1000L

Gross volume: Min 1250L(without head space)

Insulation thickness: 80mm

Working pressure: 1-2 bar

Testing pressure: 2-3 bar

Conical bottom: 60-72 degree

Jacketed and insulated, with outer cladding

Breathe valve, pressure gauge, butterfly valve, carbonation stone

Sample valve, beer and yeast outlet.

Can be customized with single layer, jacketed etc

500L/5HL Fermenter/Unitank

Material: 304 S/S or 316 S/S

Effective volume: 500L

Gross volume: Min 625L(without head space)

Insulation thickness: 80mm

Working pressure: 1-2 bar

Testing pressure: 2-3 bar

Conical bottom: 60-72 degree

Jacketed and insulated, with outer cladding

Breathe valve, pressure gauge, butterfly valve, carbonation stone

Sample valve, beer and yeast outlet.

Can be customized with single layer, jacketed etc
