Introduction:

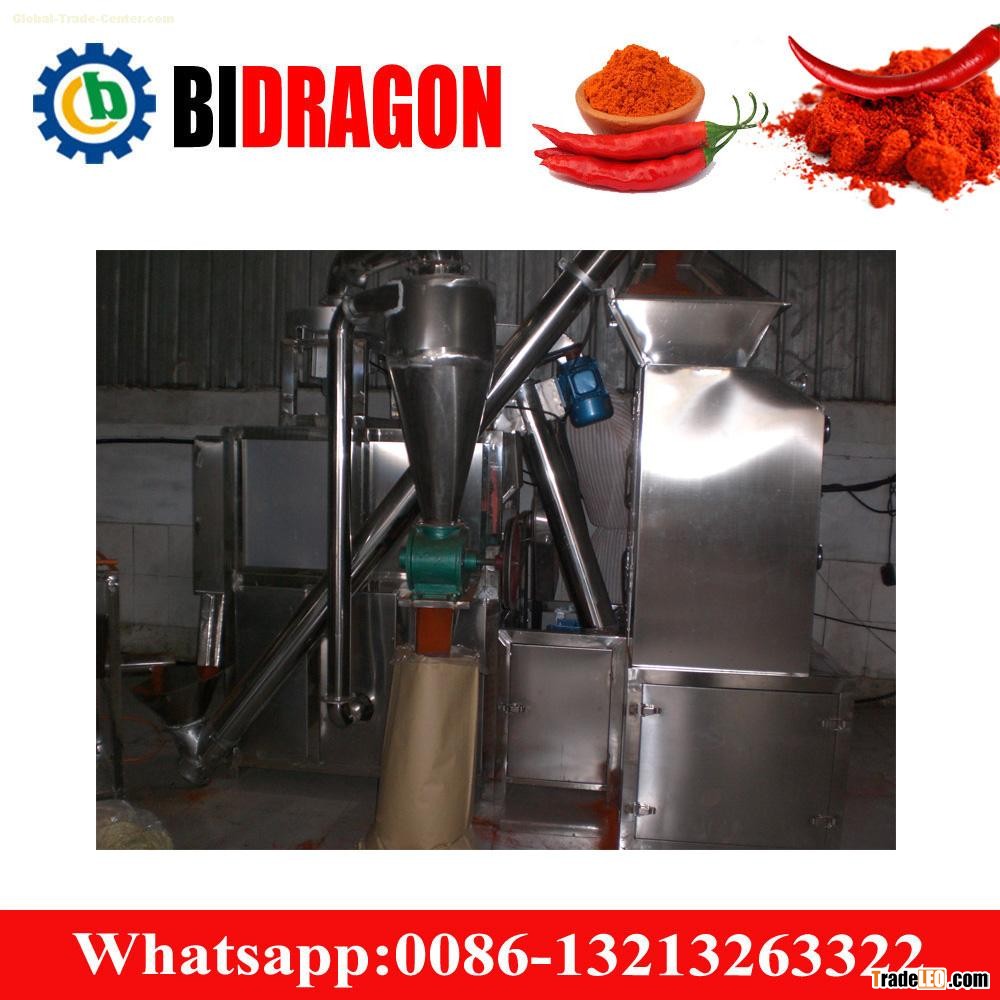

1.BCH series chili powder grinding machine is the patent machinery, by adopting the roller milling type producing spice powder. It can be applied to many less oily spices, such as ginger, garlic, pepper, fennel, cumin, turmeric, etc.

2.By roller squeezing, instead of blade crush, it can keep material natural smell and color, which are the most attractive points to customers; it is no problem if for not remove seeds and stem.

3.Newly updated grinder is more convenient for client to use and already exported and using in several countries, like India, Sri Lanka, Malaysia, Mexico, Nigeria, Bangladesh, South Africa, Rwanda etc. We can provide customized configuration and provide related machineries.

Main Technical Parameters:

1. Output: 150-200KG/H

2. Size: 50mesh/270micron（feed inlet less than 10mm）

3. The total power: 16.6 KW, 380V, 50HZ, 3 phases.

The voltage: 380V, 50HZ (based on customer requirement)

Weight 　about 1.3t    bulk 7 m3

4. The size of workshop. It needs a workshop; the length of the workshop is 5m. The span is 3.5m, the height is 3.5m.

5. Man power requirement: 1 person.
