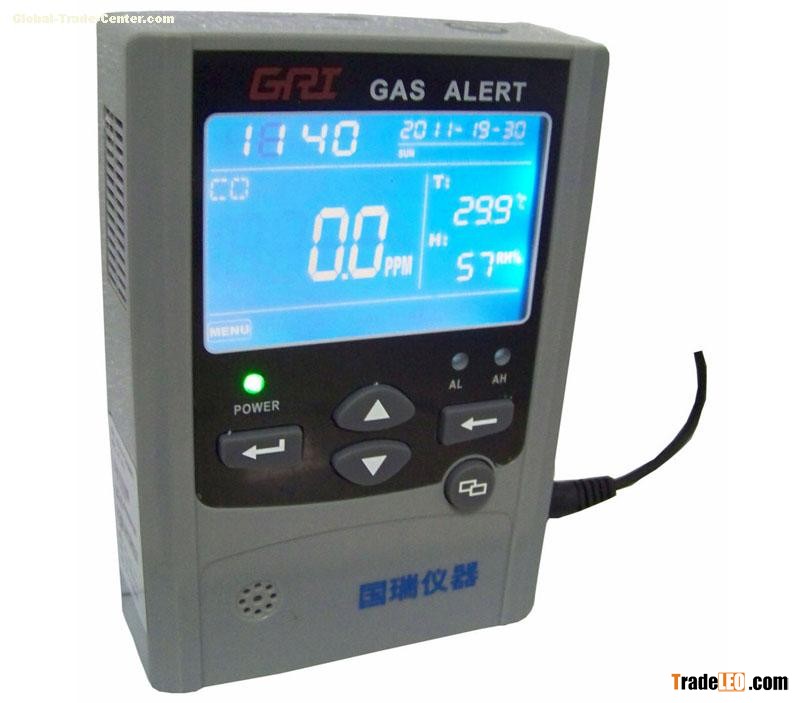

GRI-8522Wall-mounted CO2 Detective Alarm

Product Introduction

    GRI-8522 series single point wall-mounted CO2 detective alarm is an apparatus which can continuously detect CH2O concentration in operate environment .can online monitor the concentration of CO2.

    The single point wall-mounted CO2 detective alarm is natural diffused gas detective way, adopt America imported 6004 infrared detective module as the sensitive component, with high sensitivity and excellent repeatability; Highlight LED backlit plus LCD display screen real-time display the concentration of leakage gas , Exceed pre-set alarm point immediately start sound and light signals and replay control signals; international standard 4-20mA signal can directly connect DCS system of factory ,connect RS485 digital signal and factory PC .

Product Feature

imported NDIR infrared module ,performance stable and reliable ;

Provide LCD display and sound and light alarm , Full-featured;

Intelligent design , zero , alarm setting ,calibration is very convenient ;

Two alarm replays can output control signal for use to drive fans and other equipment;

Apparatus DC9-24V wide range power supply (use power adapter can connect AC 220V),can be

        use once connect the power supply ;

metal shell, robust and reliable ;

Infrared remote control ,more convenient for setting 、modifying the parameters of apparatus ;

Have standard 4-20mA current signal and RS485 digital signal output.

Application

    Petroleum and petrochemical industry 、Fire rescue 、various types of industrial safety monitoring, detection of dangerous substances

Technical parameter ：

Product name        Single point wall-mounted CO2 detective alarm

Sensor name        CO2 infrared module

Product model        GRI-8522

Sensor model        6004

Input power supply 9-24VDC

Test object          CO2

Current consumption 100-300mA

Test principle        NDIR( non diffused infrared )

Display way        LCD display screen

Test way        Diffused

Alarm way        2 levels sound and light alarm

Test range        20000/50000ppm

Alarm error        ≤±5% alarm set value

Accuracy        ±40ppm+3%FS

Operate temperature 0℃-50℃

Resolution        1ppm

Operate humidity 0-95%RH(non-condensing )

Pre-heating time 2 Min

Pressure range Atmospheric pressure    ±10%

Response time        T90≤60S

Signal output        4-20mA or RS485

Use life        15 years (in the air )

Contact capacity 1A/120VAC or 1A/24VDC

Repeatability         ≤±1%FS

Note: above part of sensors parameter please standard as the latest technical manual of CO2 sensor.
