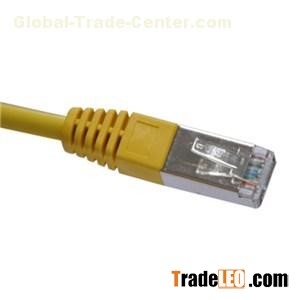

Good performance of FTP Cat.6 Patch cordDescription:Perfect for use with Gigabit Ethernet , they comes complete RJ45 male to male Connectors and plain molded strain relief, the extra foil shielding protects against Electro Magnetic Interference (EMI) and Radio Frequency Interference (RFI).Cable construction:Conductor: CAT 6 FTP stranded, 26AWG, 7x0.16mm, bare copperCable outer diameter: 6.0 0.2mm (nominal diameter)Insulation: polyethylene with color marking on white coresShield: each pair without foil, 4 pairs with overall foilOuter jacket and boots: PVC, CMX, CM, CMR, leaded and lead-free as well as LSZH versions availableCable colors: grey, others colors from RAL and Pantone are availableMechanical characteristics:Cable to plug tensile strength: 9kgsf (90n) minimumMinimum bending radius: 22mmStorage temperature: -20 to 80 CDurability: 750 mating cyclesPlug housing: UL 94-V0, UL94-V2, polycarbonatePlug contact material: 50 inch gold plating over 100 inch nickel-plated copper alloyFire performance: IEC 332.1, VW1, IEC 332.3 versions available depending on jacket typeLength: 0.5 to 100m (optional)Electrical performance:Contact resistance: 20m (maximum)Voltage: 75V (maximum)Dielectric strength: 1000V/1 minute (RMS)Current: 1.0A (maximum)Insulation resistance: 500M minimum at 500V DCPerformance test: 100% patch cord test for CAT 6A, CAT 6 and optional for CAT 5e patch cordTest: 100% Channel testPacking: 1 piece/bagDelivery lead time: 2 to 3 weeksUrgent order: within 1 weeksProduction capacity: 30,000 pieces/day
