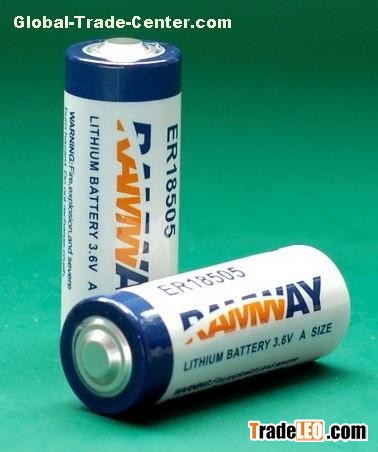

ER18505H

Specification:
Max Dimension: 18.5x50.5mm;
Nominal capacity: 3800mAh (3mA/2.0V);
Nominal voltage: 3.6V;
Max constant discharge current: 100mA;
Max pulse current: 200mA;
Operating temperature range: -55 ^+85

Primary Lithium Battery Type ER18505 has the advantages of high energy density, high open circuit voltage, wide range of operating temperature, stable operating voltage and current(over 90% of the total capacity is discharged at a high plateau voltage), long operating time (over 8 years ) for continuous low current discharge with medium current pulse and low self-discharge rate (less than 1% per year). Its main applications are : Utility Meters, Main-frame computers, PCs, GPS,Wireless Communication, Asset Tracking ,Law Enforcement, Earth Detector, Digital Control Machine, Portable Communication Equipment, Military Radio Stations, and other electric powered devices requiring small current drain high current pulse long operating life applicable batteries.
