Brand:xiangdi
Model:XDS-21
MOQ:1000 Square Met
| Opening (mm) | Wire Diameter(metal Wire) (mm) | Wire Diameter (PVC Coated)/ Inner/Outside(mm) | Strands |
| 60x80 | φ2.0-2.8 | φ2.0/3.0-2.5/3.5 | 3 |
| 80x100 | φ2.0-3.2 | φ2.0/3.0-2.8/3.8 | 3 |
| 80x120 | φ2.0-3.2 | φ2.0/3.0-2.8/3.8 | 3 |
| 100x120 | φ2.0-3.4 | φ2.0/3.0-2.8/3.8 | 3 |
| 100x150 | φ2.0-3.4 | φ2.0/3.0-2.8/3.8 | 3 |
| 120x150 | φ2.0-4.0 | φ2.0/3.0-3.0/4.0 | 3 |
material:hot-dipped galvanized / pvc-coated/ galfan
diaphragm: every 1meter
dimension length:1-4m width:1m height:0.3/0.5/1m

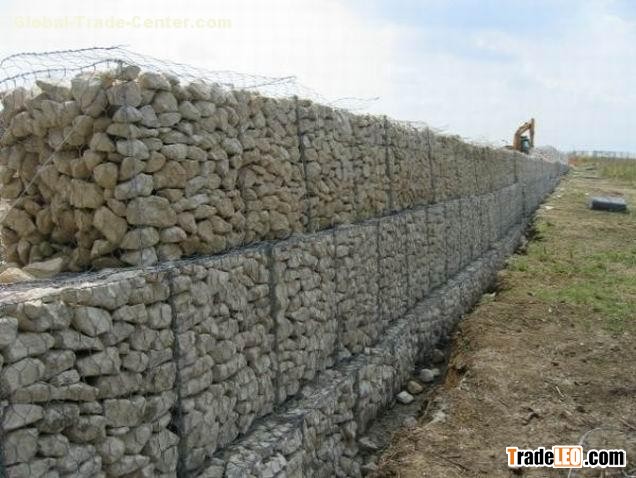

uesage: The stone cage nets widely used to control and guide the rivers and flood diversion, flood dam, rockfall fine protective, to prevent soil erosion,protect bridge, protect coastal defense engineering, port engineering, retaining wall, road protection
