Economic Fast Installation Steel Structure Building
2016-09-19 03:38 Views:177
Price:
50.00 USD/Square Met
Brand:KXD
Model:KXD-PH1402
MOQ:200 Square Met
Send Inquiry
Specifications
1. Qualified material
2. Flexible design
3. Fast installation
4. Reuse for numerous times.
5. Convenient pack
Specification of A type house:

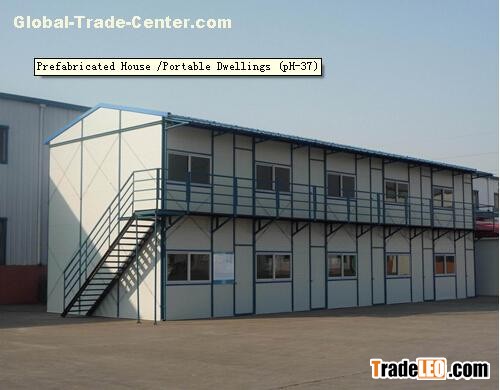

Prefabricated huse mobile house(A type) is a standard modular house. The width is 5.048m as fixed size but the inside layout can be designed as per customers' requirements. When delivery, it is knock-down to save space. based on bolts connection without welding work, it could be assembled and disassembled easily and four workers can finish 120m2 in 8 hours according to instruction and CD.
The detailed information as follow:
| No. | Sort | Name | Specification | | 1 | Specification | length |
(n-2)*1224+2*1100mm (n: prefab unit, n=4,5,6) | | 2 | Width |
5048mm | | 3 | Ridge height |
3500mm/ 3650mm / 3850mm | | 4 | Inside height |
2450mm/ 2600mm/ 2800mm | | 5 | Standard accessory | Wall board |
50mm EPS sandwich panel, 0.3mm color steel sheet and 12kg/m3 polystyrene foam density inside. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.663w/.k. | | 6 | Roof board |
60mm EPS sandwich panel, 0.3mm color steel sheet and 12kg/m3 polystyrene foam density inside. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.553w/@k. | | 7 | Door(D-1) |
SIP, single door with dimensions of 800*2000mm, furnished with a cylinder lock with 3keys. Doorframe is made of aluminum, 50mm thick EPS insulation foam. | | 8 | Door(D-2) |
SIP, single door with dimensions of 750*2000mm, furnished with a cylinder lock with 3keys. Doorframe is made of aluminum, 50mm thick EPS insulation foam. | | 9 | Window(W-1) |
Color steel sliding window with dimension of 1200mm*1000mm, red or blue, glazed with glass in a thickness of 5mm, two bay sliding, supplied with fly screen. | | 10 | Window(W-2) |
Color steel sliding window with dimension of 1200mm*500mm, red or blue, glazed with glass in a thickness of 5mm, two bay sliding, supplied with fly screen. | | 13 | Channel |
Z 50*60*30, . Painted | | 14 | Post |
H 56*40, modular pace: 1224mm. Galvanized | | 15 | Roof beam |
The trusses are composed of 353 steel and 20*20 steel. Galvanized | | 16 | Compressed tank |
C 40, Galvanized | | 17 | Option | Elevated ceiling |
Ceiling of mineral wool acoustic panel, or ceiling of calcium silicate
Ceiling of aluminium panel | | 18 | Elevated floor |
Steel structure with 14mm plywood | | 19 | Decorative floor |
PVC, laminated or ceramic tile | | 20 | Drainage system |
Provided plan, design and construction | | 21 | Electric system |
Provided plan, design and construction | | 22 | Technical parameter | Bearing load |
50kg/m 2 | | 23 | Wind pressure: |
0.5KN/M2 | | 24 | Fire proof |
B2 grade | | 25 | Resistant temperature |
-15 to 50 | | 26 | The resistant earthquake grade |
7 fission activate. |
|
|
