Brand:goldsione
Model:1/4-1"
MOQ:5000 Meter

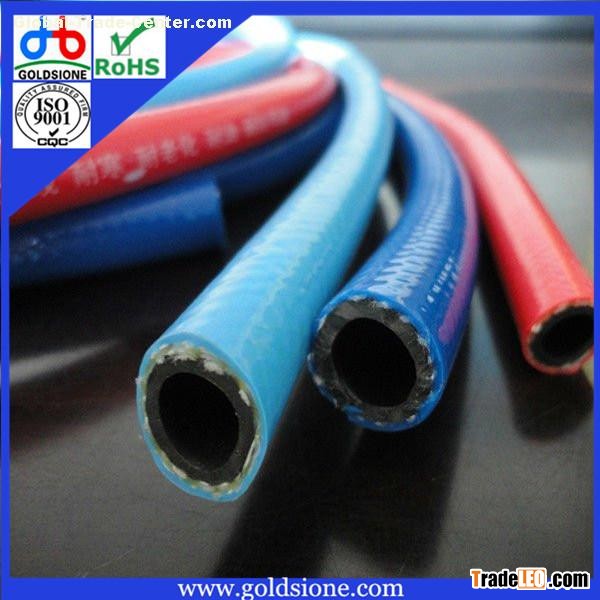

Product Description
1) PVC resin
2) multi-size available
3) flexible, resistant, erosion
CHARACTERISTICS:Being made of tough PVC materials and high tensile polyester reinforcement, this hose can work under very high working pressure. It is light, flexible, durable, anti-erosion, and explosion resistant.
APPLICATIONS:The hose is widely used in pneumatic tools, pneumatic washing apparatus, compressors, engine components, machine service and civil engineering equipments.
WORKING TEMPERATURE:-10°C-65°C
| British | Metric Measurement | Length | W.P. | B.P. | Weight | Volume | |
| Measurement | I.D | O.D | |||||
| (inch) | (mm) | (mm) | (M) | (MPa) | (MPa) | (Kg/Roll) | (m3) |
| 1/4 | 6 | 11 | 100 | 2.0 | 9.0 | 9.10 | 0.038 |
| 5/16 | 8.5 | 14 | 100 | 2.0 | 8.5 | 13.50 | 0.065 |
| 3/8 | 10 | 16 | 100 | 1.8 | 8.0 | 16.60 | 0.075 |
| 1/2 | 13 | 20 | 100 | 1.8 | 7.5 | 24.8 | 0.085 |
| 5/8 | 16 | 25 | 50 | 1.7 | 6 | 19.6 | 0.056 |
| 3/4 | 19 | 28 | 50 | 1.5 | 5.2 | 21.5 | 0.067 |
| 1 | 25 | 34 | 50 | 1.5 | 4.5 | 27.5 | 0.090 |
