Brand:KXD
Model:KXD-CH14
MOQ:1 Sets
Send Inquiry

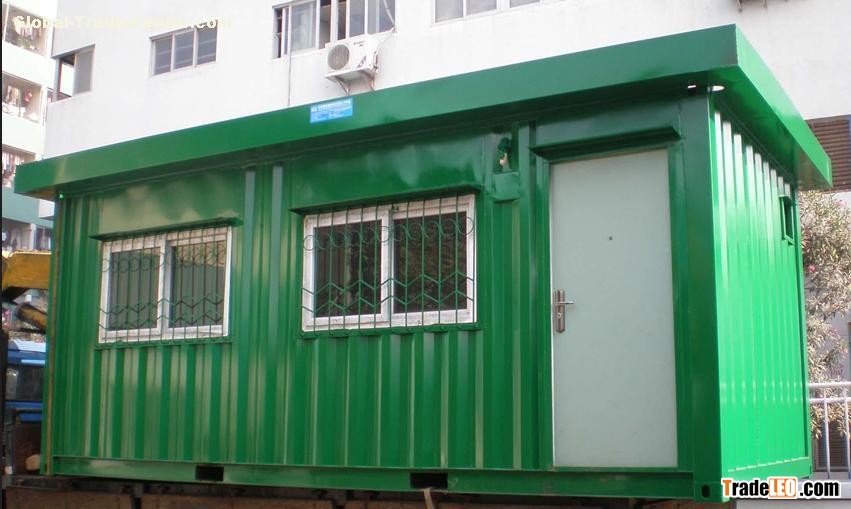

Prefab Movable Mobile Modular Container House
Products advantage
1) Integrated base and roof, PU insulation, excellent strength and tightness;
2) 0.426mm color steel sheet for sandwich wall panel, strong and beautiful;
3) Durable, beautiful, economical and environmental friendly;
4) Long life time (Max. 20 years);
5) Easy to transport and assemble (Flat packing: Can be loaded 7 units into one 40'HQ).
| Item | Sort | Name | Specification and parameter |
| 1 | product model | standard intensity | standard product, the dimension can be designed by the customers' requirement |
| 2 | removable performance | the house are divided into components in transportation and builded into a whole hoisted house | |
| 3 | specification | length | 6058mm and 12058mm |
| 4 | width | 2438mm | |
| 5 | height | 2591mm | |
| 6 | clear height indoor | 2400mm | |
| 7 | standard component | ground beam | 3mm galvanized |
| 8 | roof beam | 3mm galvanized | |
| 9 | central column | 4mm galvanized | |
| 10 | column on the corner | 4mm galvanized | |
| 11 | wall panel | 75mm double-faced coloured steel EPS sandwich board | |
| 12 | roof panel | 75mm double-faced coloured steel PU sandwich board | |
| 13 | secondary beam | Z-shaped galvanized steel iron | |
| 14 | roof insulation | 75mm polyurethane | |
| 15 | Floor panel | 18mm plywood panel+12mm laminated floor or 20mm cement-fiber +2mm PVC | |
| 16 | door | Steel Security door, 740mmx1950mm | |
| 17 | window | PVC Sliding window with Rolling shutter, 1100mmx800mm | |
| 18 | electronics, water supply and drainage | the plan, design and construction can be provided according to the related law of the country | |
| 19 | furniture and appliance | Customized-made | |
| 20 | designing parameter | roof load | 0.5KN/sqm(If the criteria were exceeded, it can also load by reinforcing the structure) |
| 21 | wind pressure load parameter | designing wind speed 210km/h (Chinese standard) | |
| 22 | seismic fortification intensity | magnitudes 8 | |
| 23 | suitable temperature | suitable temperature scope. -50° C~+50° C | |
| 24 | construction | construction tools | convenient construction, the tools are spanner, bolt driver and so on |
| 25 | construction efficiency | 4 experienced technicians can build 6-8 prefab houses with dimension of 20 feet | |
| 26 | transportation | container trunk | container with 12 meters can load 8 houses with the dimension of 20 feet |
