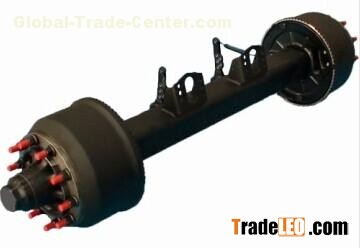

German axle features:
1. 420×200, 420×180, 420×220 is available.
2. 6" Square Axle - 12mm standard wall thickness.
3. Axles are available with single wheel fixing or without brake.
4. Standard track length - 1840mm, other track lengths are also available.
5. Other wheel fixing are also available.
6. All axles include standard manual slack adjuster, auto slack adjuster is optional.
| German axle specification | |||||||||
| Model | Max. Capacity (kg) | "S"cam Brake Series φ×Width(mm) | Track TR(mm) | Center Distance of Brake Chamber GM(mm) | Axle Beam(mm) | Stud(mm) | P.C.D (mm) | ΦH(mm) | Bearing |
| OBTGA01 | 9,000 | S 420×180 | 1090 | 555 | □150 | 10-M22×1.5 ISO | 335 | 281 | 33213 |
| 33118 | |||||||||
| OBTGA02 | 12,000 | S 420×180 | 1840 | 420 | □150 | 10-M22×1.5 ISO | 335 | 281 | 33213 |
| 33118 | |||||||||
| OBTGA03 | 14,000 | S 420×180 | 1840 | 422 | □150 | 10-M22×1.5 ISO | 335 | 281 | 33215 |
| 32219 | |||||||||
| OBTGA04 | 16,000 | S 420×200 | 1850 | 356 | □150 | 10-M22×1.5 ISO | 335 | 281 | 32314 |
| 32222 | |||||||||
| OBTGA05 | 18,000 | S 420×220 | 1850 | 376 | □150 | 10-M22×1.5 ISO | 335 | 281 | 32316 |
| 32222 | |||||||||
