Application :

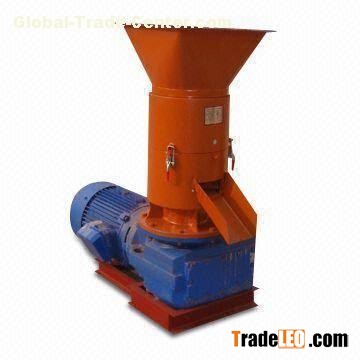

Flat die pellet mills are generally used for pellet production on a small to medium scale. They can process a wide range of biomass materials to high quality pellets for fuel which include wood, straws, grasses and other biomass residues. And also for animal feedstuff .

Technical parameters:

SK-350II

Capacity: 350-500kgs/H

Power: 30KW

Drive way : Gear box

Diameter of pellets:6-20mm

Pellet length: which can be adjusted by adjusting knife within range of 1-5cm .

Diameter of the die: 350mm

Weight: 600kgs

Dimention: length:1300mm , width:850mm ,height:1300mm

Raw material moisture request: 13%-15%

Raw material size request: 3-5mm

Advantages:

portable, compact-structure, easy-handling, high quality, durable

Other mills in this series with capacity from 100-3000kg/h are provided. Any interests, please contact us, the detailed quotation list is ready to send to you.
