Brand:SHM
Model:SHM-4
MOQ:-0 -

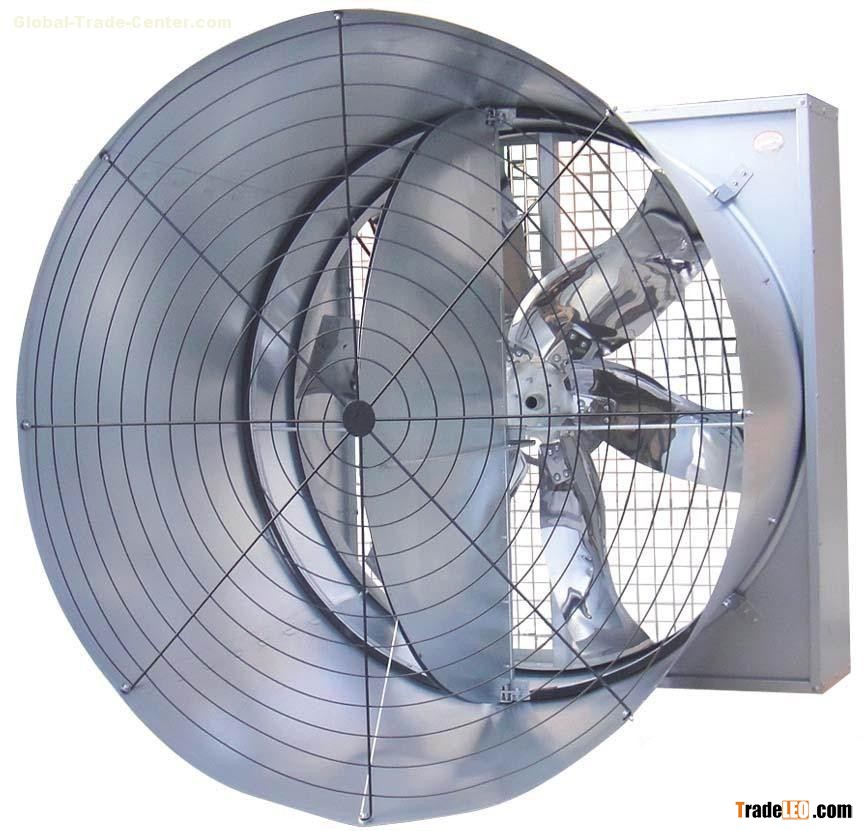

Fan frame: Hot galvanized sheet frame
sheet thickness is 1mm
zink thickness is 180g/m2
Fan blades: Germany-imported mirror face stainless steel ,
Fan blades No:6,
Fan Blade RPM : 460r/min,
Fan blade Thickness:1.2mm,
Fan blade surface finish grade.:BA,
, Blades all pass the balance test after assembled, which can assure steady running and even airflow during the operational life span of the life.
Fan motor: the high efficient and energy-saving Simens motor (others motor accordingly ) .
Fan motor protection grade: IP55
Fan motor insulation class:F
Fan Motor technical data is :1.1kw, 380v, 50Hz, RPM is 1440r/min
Fan belts: Japanese Mitsubishi brand
Fan Shutter: Adopt air downstream principle, there are complex PVC shutter and aluminum sheet shutter can choose, they are all anti-oxidation, lightweight, changeless form, flexible open and prevent air flow back
Free maintenance: The whole use period is all free maintenance
Performance: Cooling pad used together with better effect, it is used for longitudinal ventilation
| Model | Diameter blade/mm | Frequency/ HZ | Air volume/ m3/h | Power/kw | Noise(db) | Voltage/v | Size (mm) | Motor Speed(r/min) |
| SHM-2 | 1270(50in) | 50 | 51020 | 1.1 | ≤64 | 380or220 | 1380x1380x450 | ≥1400 |
