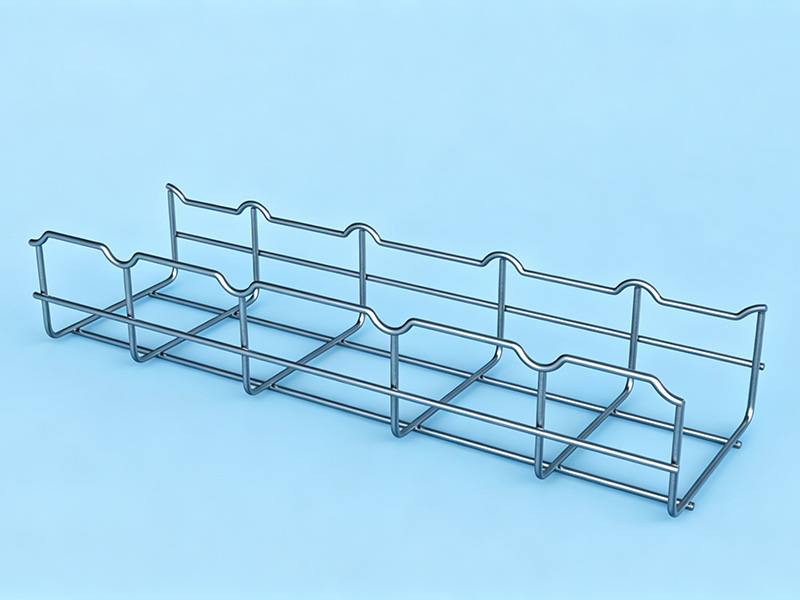

Wire Mesh Cable Tray is used for routing low voltage cables, telecommunication cables, data cables, and fiber optic cables on short spans. It is made from welded steel wire mesh with an open basket structure. The open design helps cable ventilation and makes cable checking easier during installation and maintenance. Standard length is 3000 mm. Common mesh pitch is 100 x 50 mm, and 50 x 50 mm can be made by order. Surface finish can be electro zinc plated, hot dipped galvanized, powder coated, pre-galvanized, or stainless steel electropolished. Width, height, wire diameter, finish, accessories, and packing should be confirmed by project requirement.

Specifications

Product Name: Wire Mesh Cable Tray, wire basket cable tray, welded wire cable tray

Material: Carbon steel wire or stainless steel wire by order

Structure: Welded steel wire mesh, open basket type

Standard Length: 3000 mm

Mesh Pitch: 100 x 50 mm as common pitch; 50 x 50 mm available by order

Width: According to project requirement

Height: According to project requirement

Wire Diameter: According to tray size and load requirement

Surface Finish: Electro zinc plated, hot dipped galvanized, powder coated, pre-galvanized Z300, or stainless steel electropolished

Electro Zinc Plated: For indoor use, reference BS EN 12329-2000, approx. 12 microns when required

Hot Dipped Galvanized: For outdoor use, reference BS EN 1461-1999, commonly 60-80 microns when required

Powder Coated: Mainly for indoor use. Color and coating thickness should be confirmed by order

Pre-Galvanized: Z300 coating can be checked according to order

Stainless Steel Finish: Electropolishing available for stainless steel trays

Accessories: Hold down saddle, joiner clamp set, wall bracket, hanging bracket, support, bolt and nut set

Packing: Iron pallet or export pallet packing

Use Note: Load capacity and support span should be checked according to tray size, wire diameter, cable weight, and installation method.

Application

• Low voltage cable routing in factories, workshops, and equipment rooms.
• Telecommunication cable and data cable management in commercial buildings.
• Fiber optic cable support in network rooms and light industrial projects.
• Short-span cable runs where ventilation and easy cable access are required.
