Brand:HONZHAN
Delivery date:Since payment date 3 Days delivery
1. Printer Introduce:

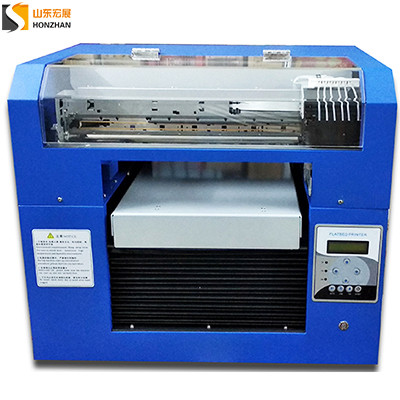

T-shirt Printer as known as Direct to Garment Printer (DTG) printer, it is a machine that directly prints ink on garments. Its performance is stable, can print bright images on any light-colored, dark-colored garments or fabric. It can print garment materials like cotton, polyester, spandex, silk, nylon, T-shirt, garment, fabric, Jeans, coat etc.
Printer use water based textile ink, after washing, printed images color are not fade.
DTG inkjet printer no need plate making, no need color registration, and imaging once. For multi-color, gradient, DTG printer has unique advantage.
A3 Size DTG Printer Technical Parameters:
|
Model |
HZ-DTGA3-8C t-shirt printer |
|
Printer head |
Epson DX5 printhead |
|
Printing process |
Micro Piezo 180 nozzles*8 colors |
|
Minimum Ink Droplet Size |
1.5 Pico liters |
|
Print Resolution |
5760*1440dpi |
|
Max printing size |
330*600mm |
|
Printer platform size |
330*800mm |
|
Print Thickness |
0 -180mm |
|
Print Speed |
Print an A4 paper size image on light color t-shirt need 60 seconds |
|
Height Adjustment |
Semi-automatic, height sensing, photoelectric shooting limit switch |
|
Ink consumption |
Approximately 10ml ink of each color to print one square meters image |
|
Ink type |
Water based textile ink |
|
Ink Color |
Cyan, Magenta, Yellow, Black, 4white (CMYK+4White) or Cyan, Magenta, Yellow, Black, Light cyan, Light Magenta, 2White (CMYK+LC+LM+2White) |
|
Ink Cartridge |
Continuous Ink Supply System (CISS) |
|
Platform in and out |
Automatic, laser positioning, accurate |
|
Platform lift |
Automatic, T-type screw |
|
Software |
AcroRip ( English, Korean, Chinese, Japanese Language) |
|
Working environment |
Temperature: 10°-35° C (50°-95° F), Humidity: 20%-80%RH |
|
Working voltage |
110V/220V AC |
|
power |
Max 35W |
|
data transmission |
high speed USB 2.0 |
|
Operation System |
Windows 7 and up (not compatible with MAC) |
|
Printer Weight |
Net Weight: 60kg Gross Weight: 90kg |
|
Machine Size |
Net size: 630*800*580mm Package size: 740*920*760mm |
