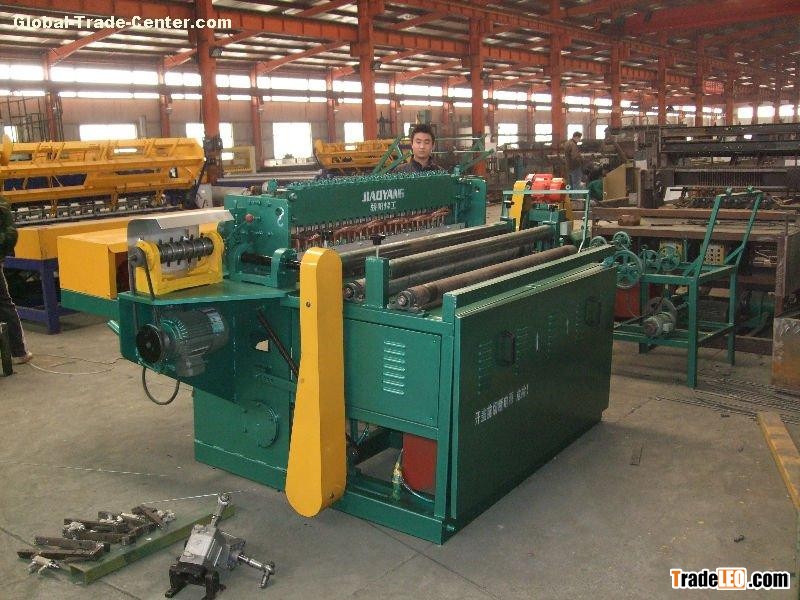

Brand:jiaoyang
Model:GWC1200B
MOQ:1 Sets
Function Characteristics ----motor power
1.This machine adopts electrical & electronic synchronous control technique both separate-phase welding and welding time is composed of digital and integrated electric circuit. This opeartion is accurate,it has stable function ,firm welded point and without welded tracks.
2.The cross and line wires are fed from coils.
3.This machine is equipped with precise equipment for weft cutting (that won the nation patent ZL2208722.2)and position (that won the nation patent AL02208721.4),so the length of wefts is identical and regular,it is unnecessary to slice the side.
4.Mesh pulling system adopts elastic tension link(that won the nation patent ZL200520024380.9)and opening positioning mesh,it is easy to regulate the mesh hole and mesh opening size is rather accurate,welding aperture could adjust randomly with range. Not only welding speed is fast but also it is easy to learn and operate.only two men can finish the operation.
5.The finished products can be in coil or in panel.
The main technical parameters
| Wire dimater | 1.4-2.3mm | Line wire feed | continuous |
| Cross wire space | 50-200mm | Cross wire feed | continuous |
| Line wire space | 50-200mm | Rated voltage | 380V |
| Width of mesh | 1200mm | Rated electrical power | 36KVA×2 |
| Welding speed | 50times/min | Overall dimension | 2.5 X 2.5 X 1.5M |
| Number of warp | 25 | Machine weight | 2800KGS |
