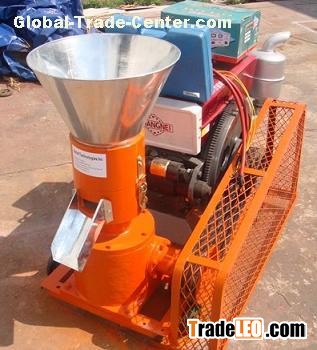

SK-E diesel pellet machine

Wood/biomass pellet machine driven by diesel, help you get out of electricity bother.

Application:

Flat die pellet mills can process a wide range of biomass materials, for a range of applications. These include wood, straws, grasses and other biomass residues. And also for animal feedstuff.

Raw material for the pellet mill must have passed through sufficient size reduction before it can be placed in the pellet mill. The raw material must have a particle size of 3-5mm or below.

Key specification and quality warranty:

Heart parts of the pellet machine- die and roller are made by high alloy steel wear resistant material according to different materials ,in order to have longer work lifetime .

Wood/biomass pellet machine with double layer dies , up and down dual-use, reduce buyer’s cost, so it can reach high capacity , also energy saving .

12months limited warranty for electric parts,

Average lifetime for die and rollers:

2000 hours for SK-350/450/550/800/1000,

800-1000hours for SK-200/250/300,

400hours for SK-105/120/150

1.

SK-200E

Capacity: 100kgs/H

Power: 15HP

Drive way: belt

Diameter of pellets:6-8mm

Pellet length: which can be adjusted by adjusting knife within range of 1-5cm .

Diameter of the die: 200mm

Weight: 450 kg (with diesel engine)

Dimention: length:1200mm , width:850mm ,height:900mm (with diesel engine)

We sell it both with or without diesel engine.

2.

SK-250E

Capacity: 150kgs/H

Power: 22HP

Drive way : belt

Diameter of pellets:6-10mm

Pellet length: which can be adjusted by adjusting knife within range of 1-5cm .

Weight: 550 kg (with diesel engine)

Dimention: length:1350mm , width:850mm ,height:900mm (with diesel engine)

We sell it both with or without diesel engine.

3.

SK-300E

Capacity: 200kgs/H

Power: 32HP

Drive way: belt

Diameter of pellets:6-12mm

Pellet length: which can be adjusted by adjusting knife within range of 1-5cm .

Weight: 680 kg (with diesel engine)

Dimention: length:1500mm , width:850mm ,height:1000mm (with diesel engine)

We sell it both with or without diesel engine.
