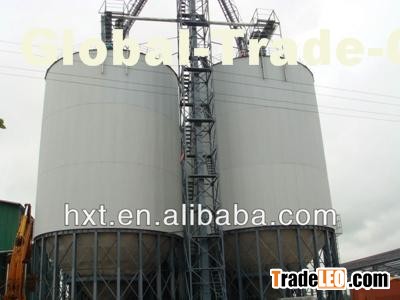

Silo model introduction:
Capacity: 1000t
Volume: 1469stere
Diameter: 11m
Silo Bottom Type: Flat Bottom
Silo Roof Angle: 25degree
Total Height: 17.3m
Galvanized Coating: 275g/m2; 350g/m2; 400g/m2
Silo Type Generally Used in Mill
Less than 1000t(include) per silo: Adopt hopper bottom silo, which can natural flow, power savely, but capacity limited for the steel leg can support limited weight.
More than 1000tons per silo: Adopt flat bottom silo, which can storing more grain, up to 10000t, but we should add a sweep auger in the silo bottom, to run the grain out.
The most cost savelyt silo: Flat bottom silo without Sweep auger, unloading by manual. this situation is suitable for different tons. but we need spent on manual cleaning in silo.
All silo models and handling device specification
| Silo type | Hopper bottom silo | Flat bottom silo | ||
| Bottom Cone Degree | 45 degree | 60 degree | | |
| Diameter | 1.8m-11m | 1.8m-7.334m |
| |
| Capacity | 5.4t-1428t | 5.8t-755t | 30t-10682t | |
| Volume | 7.2m3-1855m3 | 8.4m3-701m3 | 39m3-13873m3 | |
| Accessory Equipments: | ||||
| - Bucket Elevator with capacity from 1 tone/hour to 400 tone/hour | ||||
| Machines: | ||||
| | ||||
