Brand:Amisy Machinery
Model:-
MOQ:1 Sets

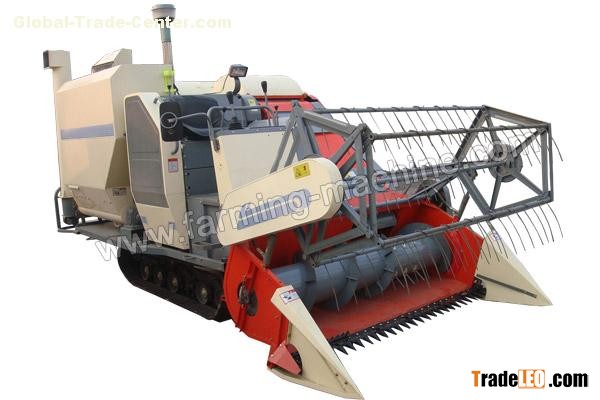

Large Rice/Wheat Combine Harvester Favorable Advantages
◆Self-propelled and whole-feeding design, low malfunction and maintenance cost.
◆With 75 HP diesel engine, 2 meters cutting width, Auto Transmission, high efficiency.
◆Double axial flow threshing cylinders and adjustable front & rear sieving plates ensure the grain more clean, less breakage and less loss.
◆Big width conveyor groove with innovated cutter bar lifting system can provide a more efficient feeding and a higher lifting level, convenient for working in paddy field and maintenance, and lower the noise and vibration.
◆Lower ground pressure, better for passing in paddy field.
◆Extremely strong Chassis; excellent waterproof suspension wheel system; easier turning & control with friction disc brake and special heavy-duty gearbox for hydraulic steering combine harvester.
Self-propelled Diesel Engine Combine Harvester Specifications
| Chassis | Rubber Track---400x90x48 Transmission---HST F:3 / R:3 Ground Pressure---≤18 Kpa Min. Ground Clearance---240 mm |
| Header | Cutting Width ---2000 mm Feed Rice & wheat---2.0kg/sRapeseed---1.5 kg/s Type of Lifting---Hydraulic Lifting of Reel---Hydraulic Steering---Hydraulic Conveyor---Chain rack tooth type Threshing Cylinder---Tangential Flow + Axial Flow, Dual Spike-tooth type Cleaning Fan (front blowing + rear suction)+Sieving+re-thresher Paddy fill Method---Grain Tank & Bag Grain Tank---1.1 CBM/ (500-550 kg) |
| Total Loss | Rice---≤3% Wheat---≤1.2% Breakage rice---≤1.5% wheat---≤1.0% Impurity rice---≤2.0% wheat---t≤2.0% Using reliability---≥95 |
