Brand:Shunde Kingtool
Quantity:1
Send Inquiry

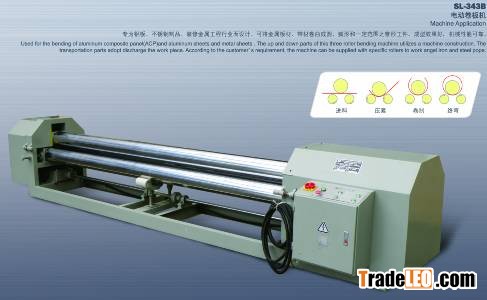

Used for the bending of aluminum composite panel(ACP) and aluminum sheets and metal sheets. The up and down parts of this three roller bending machine utilizes a machine construction. The transportation parts adopt power-driven. The top roller can be moved up and down by the motor to discharge the workpiece. According to the customer's requirement, the machine can be supplied with specific rollers to work angle iron and steel pipe.MAIN TECHNIQUE PARAMETER
1.Maximum thickness.........................4mm(iron)/6mm(aluminum)
2.Maximum width.............................3000mm
3.Yield limit...............................240MPa
4.Minimum diameter full capacity............380mm
5.Top roller diameter.......................180mm
6.Bottom roller diameter....................150mm
7.Motor.....................................5KW
8.Weight....................................1500KG
9.Overall dimension.........................4000*860*950mm
