Glazed Tile Forming Machine XF40-256-768

2017-01-16 07:48 Views:148

Price:Negotiable
Brand:XIANFA
Quantity:20

Product introduction

This type of glazed tile has advantage including beautiful, classical appearance and grace taste. It can be widely used in villadom, hotel, exhibition, vocation village, family construction and outdoor decorate.

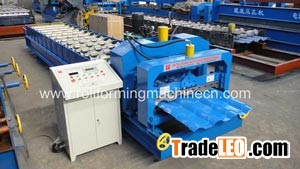

This machine is composed of feed leading table, main forming machine, mould former device, cutting device, hydraulic station, computer control system ans so on..

Optional devices: normal holder, hydraulic holder, auto-stacker and discharge table.

Main parameter:

1. Install size: 11800mm*1700mm*1600mm

2. Rollers: 14-16 rows

3. Rolling material: Forging Steel 45#

4. Rolling galvanization thickness:0.05 mm

5. Material of the cutting blade :Cr12

6. Productivity: 0~3m/min

7. Electric control system: PLC vector inverter

8. Main motor power: 4 KW

9. Hydraulic unit power: 3 KW

10. Raw material thickness: 0.4-0.6mm

11. Raw material width: 1000mm

( Other width can be costom-made)
