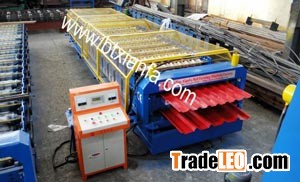

Double Layer Tile Roof Roll Forming Machine Parameter:
1.Suitable to process:Colored Steel plate, galvanized board
2.Width of the plate:1200mm
3.Rollers:upper level 14 rows,Down level 11 rows
4.Rolling material: Forging Steel 45#
5.Rolling galvanization thickness:0.05 mm
6.Material of the cutting blade :Cr12
7.Hydraulic oil :40#
8.Dimensions:7.5*1.55*1.71m
9.Power:4+4kw
10.Thickness of the plate:0.3-0.7mm
11.Productivity:2-10m/min
12.Diameter of the roller:70mm
13.Weight:about 6.4T
14.Voltage:380V 50Hz
15.Processing precision : within 1.00mm
16.Equipment components: Man-made uncoiler,Roll forming machine,compture control system,hydraulic control system,press forming,cutting
17.Transportation:one complate equipment need one 40feet container to hold
18.Orders & Payment Term:30%deposit,and balance before delivery
