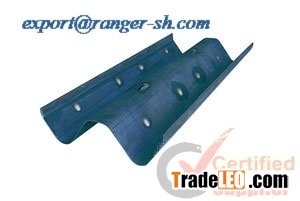

Highway Guard Rail Roll Forming Machine,Expressway Guard Rail Roll Forming Machine;
Technical Parameters of the Machine:
Matching material: Q235 galvanized steel strip.
Material thickness: 2-4mm;
Width: 483mm ( or according to customer's requirement );
Effective material width: 312mm (or according to customer's requirement);
Main motor power for forming: 22 KW;
Decoiler: Manual decoiler;
Weight capacity of Decoiler: 5 Ton;
Transimssion: By Chain and Gear;
Forming speed: 8-12m/min;
Roll forming stations: about 17 stations;
Controlling system: Panasonic PLC Control;
Voltage: 380V/ 3phase/ 50 Hz or according to customer local input power;
