Model Item HTC380
Engine Rated Power(Kw) 14.9Kw(20Hp)
Rotating speed(rpm) 3600
Noise (dB) 95
GMdraulic System
Pressure(Mpa) 17
Cycle Time (s) Raise Dump Lower
4.27 1.34 3.31
Performance Operating Load (Kg) 200
Bucket capacity (m3) 0.15
Max Lifting Force(Kg) 375
Speed (Km/h) 5.5
Operating weight(Kg) 940
Fuel tank(L) 21
GMdraulic oil tank(L) 27
Tyre 16*6-8

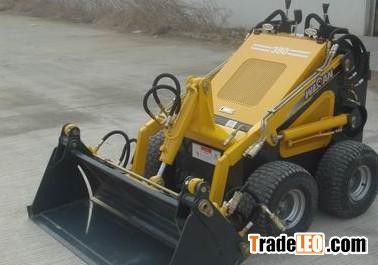

Dimension of HTC380 Mini Loader
Model
Item HTC380
Max. height (mm) 2112
Dump height(mm) 1460
Overall height (mm) 1205
Overall length with bucket(mm) 2206
Dump distance (mm) 388
Overall Length without bucket(mm) 1752
Bucket width(mm) 980
Overall length to outside of tyre(mm) 1033
Ground clearance(mm) 90
Clearance circuit front (mm) 1307
Dump angle at max height 30
Max attachment rollback when bucket on ground 25
