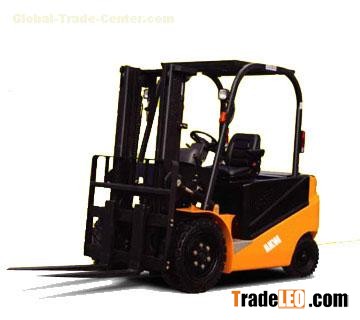

Logistics Equipment LG35B features:

Battery Counter-Balanced Forklift

Equipped with AC motor, powerful and economical

Higher travelling speed, stable and efficient

Model LG35B

Power type Battery

Rated capacity (Kg) 3500

J Load centre (mm)      500

h1 STD Max.lifting height (mm) 3000

h3 Free lifting height (mm) 165

L5*W*T Fork size (mm) 1070×125×45

Mast tilt angle (deg) 6/12

L3 Front overhang (mm) 478

Overall dimension

L1 Overall length(with fork)(mm) 3648

W1 Overall width (mm) 1225

h2 Mast lowered height (mm) 2077

h4 Overhead guard height (mm) 2175

R1 Min.turning radius (mm) 2410

Min.intersecting aisle (mm) 3728
