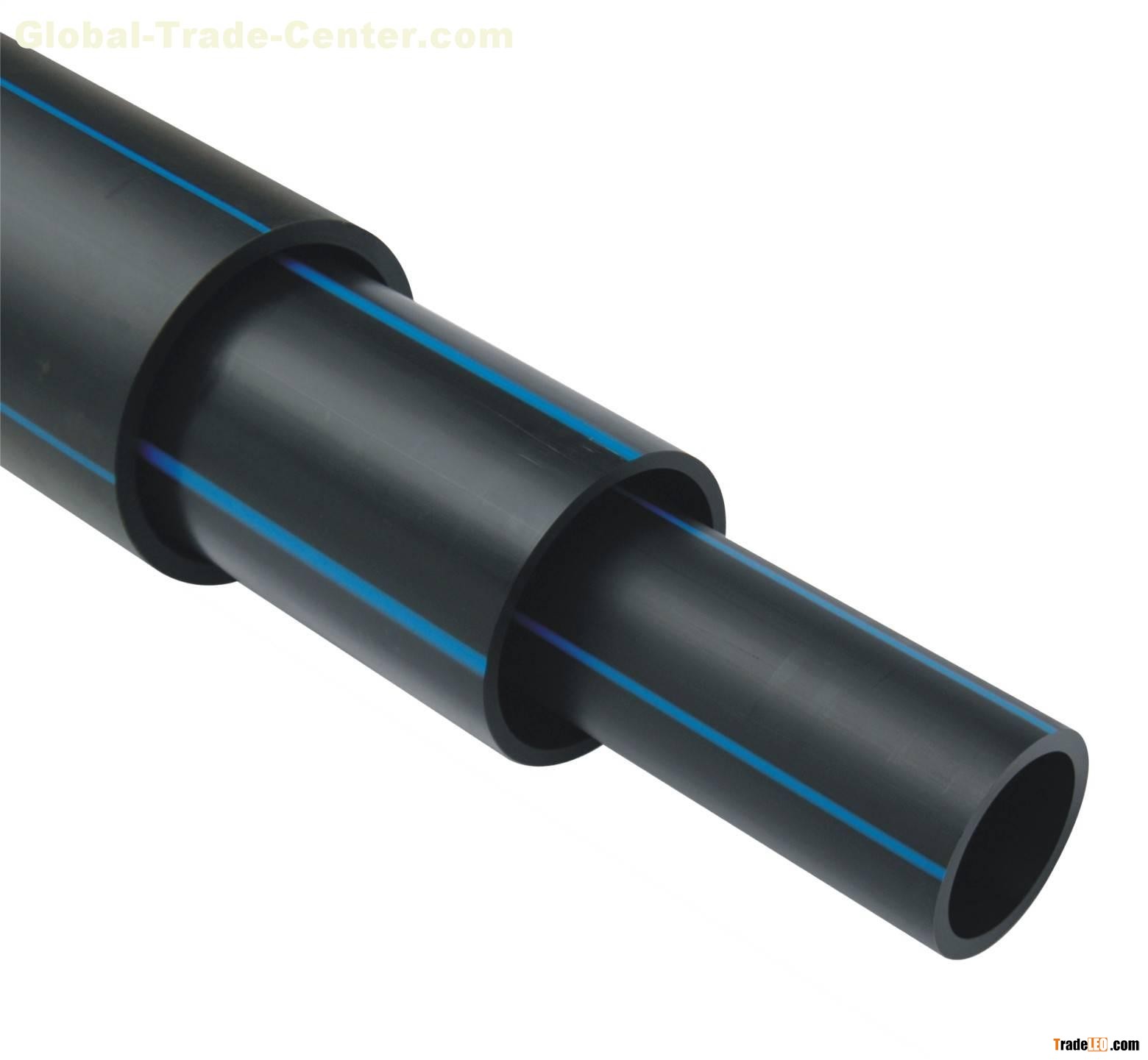

HDPE hose / PE hose for Farming Irrigation
Diameter(mm): Described Below
Material: HDPE
Color: Black
Working Pressure(Mpa):0.8-1.6
Product description: Type: Agricultural irrigation equipment Color: Black Material: PE Size: Diameter Dn20,25,30,40,50,63,75,90,110,125,140, 160,180,200,225,250,280,315,400,450,500,560,630,710, 8
Type: Agricultural irrigation equipment
Diameter(mm): Dn20,25,30,40,50,63,75,90,110,125,140,160,180,200,225,250,280,315,400,450,500,560,630,710,800
Working Pressure(Mpa): 0.8 ,1.0 ,1.25 , 1.6
Customized is acceptable: Yes
HDPE Hose for Farming Irrigation
| Nominal External Diameter (mm) | Average Ultimate Deviation of External Diameter (mm) | Roll Length (m) | Nominal Pressure (MPa) | ||||||
| PN0.25 | PN0.4 | PN0.6 | |||||||
| Nominal Thickness (mm) | Ultimate Deviation (mm) | Nominal Thickness (mm) | Ultimate Deviation (mm) | Nominal Thickness (mm) | Ultimate Deviation (mm) | ||||
| 16 | +0.30 | 1000 | 0.8 | +0.30 | 1.2 | +0.40 | 1.8 | +0.40 | |
| 20 | +0.30 | 600 | 1.0 | +0.30 | 1.5 | +0.40 | 2.2 | +0.50 | |
| 25 | +0.30 | 400 | 1.2 | +0.40 | 1.9 | +0.40 | 2.7 | +0.50 | |
| 32 | +0.30 | 300 | 1.6 | +0.40 | 2.4 | +0.50 | 3.5 | +0.60 | |
| 50 | +0.50 | 300 | 2.4 | +0.50 | 3.7 | +0.6 | 5.4 | +0.90 | |
| 63 | +0.60 | 200 | 3.0 | +0.50 | 4.7 | +0.80 | 6.8 | +1.10 | |
| 75 | +0.70 | 150 | 3.6 | +0.60 | 5.6 | +0.90 | 8.1 | +1.30 | |
| 90 | +0.90 | 100 | 4.3 | +0.70 | 6.7 | +1.10 | 9.7 | +1.50 | |
