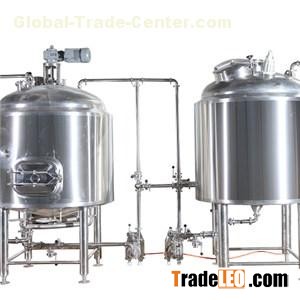

10 barrel( 10bbl ) brewing systemSpecification:ItemModelMaterialTechnical SpecificationsMalt Mill systemMalt MillMachine300kg/hour Grist Case1m3 Flex augerStainless steelMalt Mill Machine300kg/hour1. Roller-crushing style;Q2352. Match UL Motor、belt roller、Belt etc);3. Dimension: 600x 570x 1085mm.Grist Case 1.Be made of stainless steel 3042.Hopper would hang over the mash cooker, Hopper have manually 3.operated gate valve at the bottom Flex auger 1.5m3/h, with VFDMash/Lauter Tun10bblStainless steel1. Drawplates finish,2. Effective capacity 10bbl,3. Mineral wool insulation, slotted false bottom,4. Mechanical agitation, frequency control,5. Cycloidal pin gear speed reducer,6. Insulation 80mm, inner body 3mm,7. Welding line polish fine lined belt, CIP spray ball,8. Manhole with sight glass, PT 100 temperature probe,9. Level gauge,10. Four stainless steel legs with brace and adjustable bolt.11. Assorted fittings and valves.Kettle/Whirlpool Tun10bblStainless steel1. Drawplates finish,2. Effective capacity 10bbl,3. Mineral wool insulation, steam heating,4. Insulation 80mm, inner body 3mm,5. CIP Spray ball,6. Manhole with sight glass,7. PT 100 temperature probe,8. Level gauge, with tangent line,9. Four stainless steel legs with brace and adjustable bolt,10. Welding line polish fine lined belt,11. Assorted fittings and valves.hot liquor tank20bblStainless steel1. Stainless steel 304; 2. Working volume: 20bbl;3. Steam heating jacket 4. Thickness of Insulation Layer: 80mm;5. Thickness of Inner: 3mm;6. CIP rotary Spray ball; Liquid level and temperature read-out;Plate Outer and Inner protection, ribbon polished on welds.hot pump3t/hrStainless steel1. Stainless Steel3042. Inlet dimension: φ38，outlet dimension: φ32, clampWort PumpFlow Rate:3m3/hStainless steelFrequency conversionTemperature resistance 120℃Inlet φ38, outlet φ32, clamp connection,Heat Exchanger8 ㎡All stainless steelDouble stage, outer size: 540×320×710,Ice water inlet/outlet: G1, tap water inlet:G1,Tape water outlet: ö32 clamp, wort inlet/outlet: ö32 clamp.Brewhouse Pipes ThermometerWNG/WNY(0～100℃)Glass/SUS304Wort thermometer, with stainless steel sleeveAeration AssemblyÔ32SUS304Used for wort heat exchanger outletSintered StoneÔ22×125TitiumFiltration accuracy 0.45 micrometer, connection M12Survey BarrelÖ32SUS304Length 350mmGrain RakeL=1300Stainless steel PlatformAssortedStainless steel Fermentation Tank10bblStainless steel Bright Beer Tank10bblStainless steel Yeast Adding Tank10LStainless steel Flexible Hose imported food grade rubber hose, with hose couplerInsulation Pipes Black rubber spongeAssociated with PAP plate and adhesive tapeGlycol Tank30bblstainless steelDrawplates finish,Effective capacity:30bbl,Insulation 80mm,Inner thickness:3mm,Outer thickness:2mm,Welding line polish fine lined belt,Valves and accessories.Chiller10HP CE certificateGlycol Pump3m 3/hStainless steel Cooling Pipes Stainless steelglycol piping between glycol tank, fermentation tanks, and heat exchanger,complete with valves and fittings.Insulation Pipes Black rubber spongeAssociated with PAP plate and adhesive tapeAcid Tank100LStainless steelDrawplates finish,Including acid tank and alkali tank（electric heating tubes）,Effective volume: 100L,Inner thickness 2mm,Valves and pipes,Polishing line on welding joint.Alkalai Tank100LStainless steelTrolley/Cart1300×600Stainless steel CIP Pump Stainless steel Pipes
