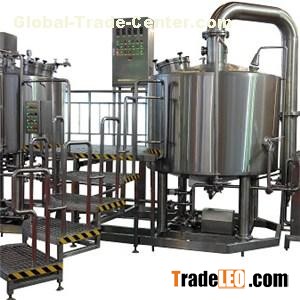

Specification:Mash/Lauter Tun1000LStainless steel1. Drawplates finish,2. Effective capacity 1000L,3. Mineral wool insulation, slotted false bottom,4. Mechanical agitation, frequency control,5. Cycloidal pin gear speed reducer,6. Insulation 80mm, inner body 3mm,7. Welding line polish fine lined belt, CIP spray ball,8. Manhole with sight glass, PT 100 temperature probe,9. Level gauge,10. Four stainless steel legs with brace and adjustable bolt.11. Assorted fittings and valves.Kettle/Whirlpool Tun1000LStainless steel1. Drawplates finish,2. Effective capacity 1000L,3. Mineral wool insulation, steam heating,4. Insulation 80mm, inner body 3mm,5. CIP Spray ball,6. Manhole with sight glass,7. PT 100 temperature probe,8. Level gauge, with tangent line,9. Four stainless steel legs with brace and adjust able bolt,10. Welding line polish fine lined belt,11. Assorted fittings and valves.Wort Pump Heat Exchanger6 ㎡All stainless steelDouble stage, outer size: 540×320×710,Ice water inlet/outlet: G1, tap water inlet:G1,Tape water outlet: ö32 clamp, wort inlet/outlet: ö32 clamp.Brewhouse Pipes ThermometerWNG/WNY(0～ 100℃)Glass/SUS304Wort thermometer, with stainless steel sleeveAeration AssemblyÔ32SUS304Used for wort heat exchanger outletSintered StoneÔ22×125TitiumFiltration accuracy 0.45 micrometer, connection M12Survey BarrelÖ32SUS304Length 350mmGrain RakeL=1500Stainless steel PlatformAssortedStainless steel Remark : Capacity of the brewhouse we can make : 1BBL-30BBL( 25% Headspace minimum)Packing
