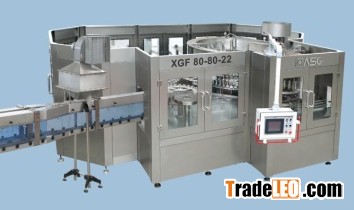

XGF,XXGF series Non-Carbonated Filling Line apply to the production of non-carbonated drink as pure water and mineral water,with optional capacity from 5000BPH to 40000 BPH.Main Technical Parameters:
Type XGF16/16/5 XGF24/24/8 XGF32/32/8 XGF40/40/10 XGF50/50/12 XGF70/65/15 XGF72/72/18 XGF80/80/22
Washing Heads 16 24 32 40 50 70 72 80
Filling Heads 16 24 32 40 50 65 72 80
Capping Heads 5 8 8 10 12 15 18 22
Output 8000BPH 12000BPH 15000BPH 18000BPH 24000BPH 28000BPH 35000BPH 40000BPH
Measurement 2850x2150
x2750 2880x2180
x2750 3380x2580
x2750 4430x3280
x2750 4720x3550
x2750 6000x5450
x2750 6500x4680
x2750 6680x6640
x2750
Power 2.2KW 2.2KW 3KW 7.5KW 7.5KW 11KW 15KW 19KW
