Brand:-
Model:-
MOQ:-0 -
Send Inquiry

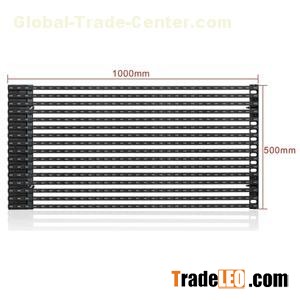

Features: Energy SavingHigh quality power supply, supports Wide voltage input (110-240A VC), features power factor correction (PFC) Synchronous rectification function, self-cooling design.Thin and LighterAll Aluminum alloy components, thickness are only 50MM and over 65% lighter than Traditional LED Display.TransparencyBar Structure, ultrathin and portable, reduce wind, transmission.Easy InstallationSimple display structure, front/back maintenance, fast installation and disconnection, 5seconds for one person.Warranty Stable Operation80% fewer connectors than traditional led display, reduced failure rate, suited to large led media facade project.Technical Specification:Product parameterPixel pitchHorizontal 31.25mm;Vertical 31.25mmPixel configuration1R1G1B/CREE,NICHIA,EPISTARPixel density10246dot/㎡Cabinet size1000mmX500mmX50mmCabinet resolution32dotX16dotCabinet weight15Kg/㎡Brightness5500CD/㎡Protection GrandIP68 front/IP65/backScan model1/1scan(static)frame Frequency60HzRefresh rate≥1200HZGray scale14bitsTransparency Rate65%Max power consumption280W/㎡Average power consumption100W/㎡Viewing angleHorizontal 120° vertical 60°Viewing distance≥10mPower supply220VAC(11VAC)Working temperature-35°C to 50°CWorking Humidity10% to 90%Installation methodFixed/RentalLife time≥100000HSystem ControllerLINSN/NOVAControl distanceCate5:100m, Single model fiber 10KM
