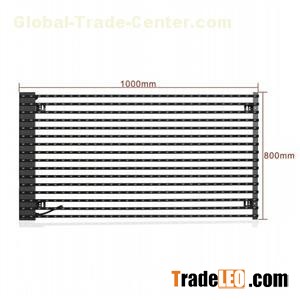

Features:Energy SavingSelf-cooling design, no need for extra supplemental cooling facilities, lower carbon, environmentally friendly...Thin and LighterAll Aluminum alloy components, thickness are only 50MM and over 65% lighter than Traditional LED Display.TransparencyBar Structure, ultrathin and portable, reduce wind, transmission.Easy InstallationSimple display structure, front/back maintenance, fast installation and disconnection, 5seconds for one person.Warranty Stable Operation80% fewer connectors than traditional led display, reduced failure rate, suited to large led media facade project.CustomizedCustomize as needed, satisfy customer various display demand.Product parameterPixel pitchHorizontal 100mm;Vertical 50mmPixel configuration2R2G2B/CREE,NICHIA,EPISTARPixel density200dot/㎡Cabinet size1000mmX800mmX50mmCabinet resolution10dotX16dotCabinet weight15Kg/㎡Brightness1500CD/㎡Protection GrandIP68 front/IP65/backScan model1/1scan(static)frame Frequency60HzRefresh rate≥1200HZGray scale16bitsTransparency Rate75%Max power consumption150W/㎡Average power consumption60W/㎡Viewing angleHorizontal 120° vertical 60°Viewing distance≥10mPower supply220VAC(11VAC)Working temperature-35°C to 50°CWorking Humidity10% to 90%Installation methodFixed/RentalLife time≥100000HSystem ControllerLINSN/NOVAControl distanceCate5:100m, Single model fiber 10KM
