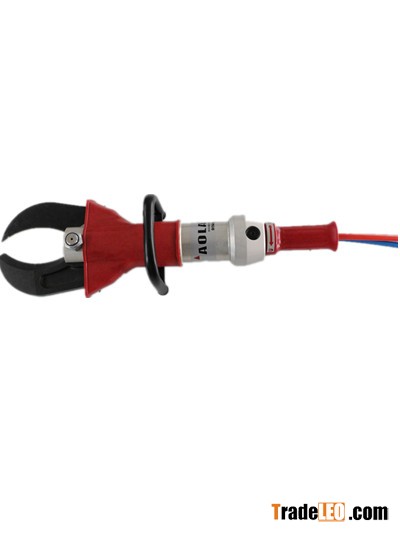

- Material: Shearing Blade adopt High-quality Heat-treated Tool steel, with surface anodized, good in wearing resistance;- Functions: Cut off vehicle parts, metal structure, heterogenic steel pipe, steel
plate and so on;
Max. Opening Distance of Blades =150mm
Rated Working Pressure 63MPa(630.000bar)
Max. Cutting Capacity(Q235 steel) 15mm(steel plate);F28mm(circle steel)
Max. Cutting Force 390KN(39T)
Opening Time without Load(Powered by motor pump)=25s
Closing Time without Load(Powered by motor pump)=30s
Weight(working condition) =13.2kg
Dimension(L*W*H) 710*210*165mm
