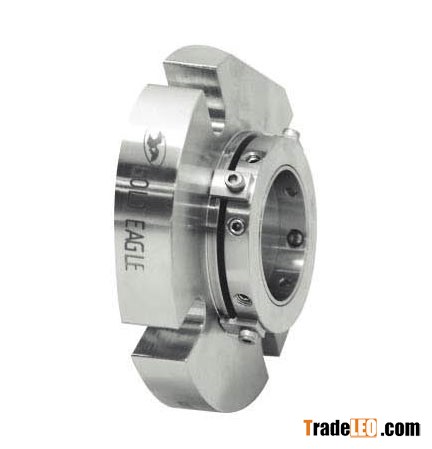

ingle balanced standard cartridge seals according ANSI/ISO/DIN.Features
Single mechanical seal
Balanced seal
Standard Cartridge mechanical seals
According ANSI/ISO/DIN
Extra-short axial design
Operating Range
Pressure: p = 20bar (290PSI)
Temperature: t = -20 °C~204 °C (-4 °F~399 °F)
Sliding velocity: vg = 15 m/s (49 ft/s)
Sizes: 25~100 mm (1"~4")
Materials
Seal face: Silicon carbide, Carbon graphite, Tungsten carbide
Secondary seals: FKM (V), EPDM (E), FFKM (K), Perfluorocarbon rubber/PTFE (U1)
metal parts: 316, CrNiMo steel (G), CrNiMo cast steel (G)
