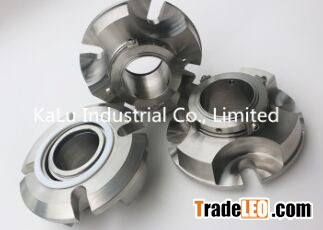

KL-5610, to replace single cartridge seal Johncrane 5610 type.Single cartridge mechanical seal.
Wave spring type, other type with Bushing design is also available.
Operating Limits:
Temperature:-50---204
Speed: 23m/s
Pressure: 20bar
Standard size: 24-140mm or 1”-5.5”
The common material:
Sealing ring: Car, Sic, Ssic, TC
Secondary seal: NBR, EPDM, Viton, Kalrez
Spring and metal parts: 304, 316, HAST.C.
