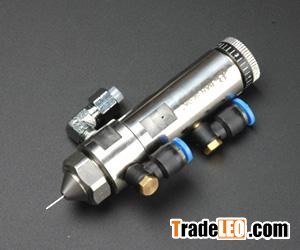

Precise Spray Valve(SEC-500/505) applies to many kinds of precise spray processes, the min spray width can be 2mm.specifications:
Model
SEC-500/505
Operating type
Needle off
Max discharge rate
8L/min
Viscosity range
1~1,000cps
Min spray width
7mm/2mm
Operating air pressure
5kgf/cm2
Max fluid control pressure)
10kgf/cm2
Operating velocity
400times/min
Air port
PT1/8”
Material of measuring part
SUS 303
Material of driving part
SUS 303
Weight
285g
Precise Spray Valve(SEC-500/505) is high precise and efficient.
