Working Principle of Water Jet Flow Vacuum Pump:Water Jet Flow Vacuum Pump takes circulating water as working fluid, uses the negative pressure created by fluid jet to eject.

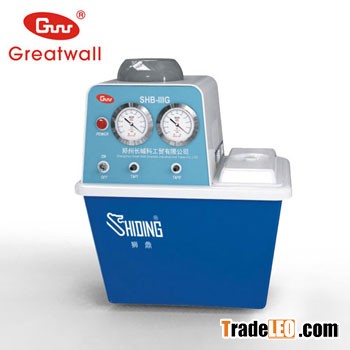

Parameters of SHB-IIIG:
Model:SHB-IIIG;
Power(W):180;
Power supply(V/Hz):220/50;
Flow(L/min):80;
Lift(m):10;
Maximum Vacuum Degree(MPa):0.098 (20mbar);
Single Tap Air Sucking Amount(L/min):10;
Single Tap Air Sucking Amount(A):2;
Safety functions:Check valve;
Capacity of water storage tank(L):15;
Materials of Water Tank:PP;
Dimensions(mm):385L×280W×420H;
Weight(kg):11.
