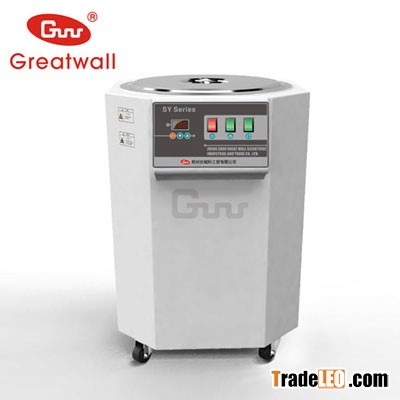

Brief Introduction of Circulating Oil Bath:Provide heat source for all kinds of devices need to be heated. Can be used alone and also can be used with Rotary Evaporators and Reaction Kettles. There are water bath, oil bath, circulating water bath, circulating oil bath, air cooling circulating water bath, air cooling circulating oil bath and other types which can be chosen according to the needs.
Parameters of SY-X2-50L:
Bath volume (L): 50;
Heating to temperature (?): 200 ;
Temperature range (?): Room temperature~200;
Power supply: 380V 50Hz ;
Temperature stability (?): ±2 ;
Power of heater strip (W): 6000;
Rated flow of Circulating pump(L/min): 30;
Lift of Circulating pump(m): 10~12;
Power of Circulating pump(W): 280;
Opening size(?):F500;
Inner diameter and height of liquid storage tank (mm): F500×270;
Material of liquid storage tank: SUS304;
Dimension (mm): 615L×550W×811H;
Weight (kg): about 35.
