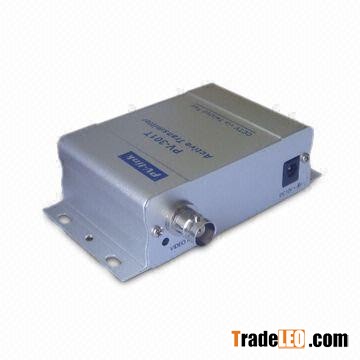

Video Balun with 75 Ohms BNC Coaxial and -10 to 50 Degree Celsius Working Temperature
Model Number: PV-301T. video balun

Key Specifications/Special Features:

Specification: single-channel
Frequency response: 5MHz
Common mode/differential-mode rejection: 15kHz to 6MHz, 60dB
BNC coax: 75 ohms
UTP/connector: 100 or RJ-45 100 ohms
Working temperature: -10 to 50°C
Storage temperature: -30 to 70°C
Humidity: 0 to 95% RH
Specification: 24AWG UTP CAT5
Impedance: 9 Ohms (100m)
DC loop resistance: 18 ohms/100m
Differential capacitance: 62pf/m (maximum)
Dimension: 103 x 70 x 30mm
Weight: 100g
Full-motion color CCTV video at distances up to 1,200 feet (400m) when used with any passive transceiver
Full-motion color CCTV video at distances up to 5,400 feet (1,800m)
