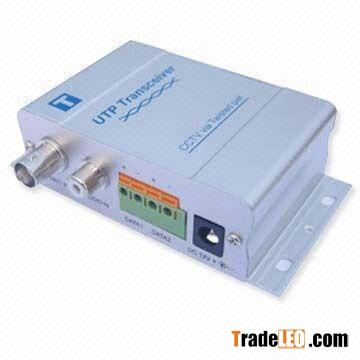

Active Video Balun with Single Channel and Audio Transmitter, Measuring 95 x 55 x 28.5mm
Model Number: PV302T
Key Specifications/Special Features:

Video balun
Specification: single-channel
Video:
Frequency response: DC-6MHz
Common mode/differential-mode rejection: 15kHz to 6MHz, 60dB type
Impedance:
BNC coax: 75 ohms
UTP/connector: 100 ohms or RJ-45 100 ohms
Environment:
Temperature: 0 to 50 degree Celsius
Humidity: 0 to 95%
Wire type:
Specification: 24AWG UTP CAT-5
Impedance: 100 ohms +/- 20%
DC loop resistance: 18 ohms/100m
Differential capacitance: 62pf/M (maximum)
Dimensions: 95 x 55 x 28.5mm
Weight: 60g
Full-motion color CCTV video at distances up to 1,200 feet (400m) when used with any passive transceiver
Full-motion color CCTV video at distances up to 5,400 feet (1,800m) when used with any active receiver
