Brand:BD
Send Inquiry

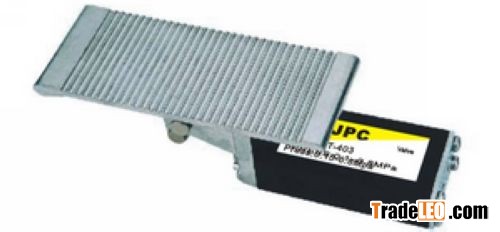

ST Foot Valve We are supplying the foot valve (pneumatic valve)belongs to pneumatic products.
Pneumatic component:
@Control elements(solenoid valve, pneumatic control valve, mechanical valve),
@ Air Source Treatment Elements(filter, regulator valve, lubricator),
@Pneumatic actuators (cylinder),
@Pneumatic accessory(muffler, buffer, metal connector, etc)
Fluid engineering parts:
@Mechanical seals( pump seals, metal bellow seals),
@Sealing face/rings(RSIC, TC, CARBON GRAPHIT etc),
@metal parts(sleeves, drive flange, glands bush made in S. S304, 316, 1Cr13 ect),
@Pump fittings(bearing, spray nozzle, thrust collar)
Model ST-402 ST-402A ST-403 ST-4023A
Working Medium Air
Motion Pattern Direct Drive Type
Joint Pipe Bore G1/4" G3/8"
Working Pressure Range 0~8kgf/cm 2
Operating temperature 0~60 degree centigrade
Lubrication No need
Major Assembly material quality Aluminum alloy , NBR
