Price:Negotiable
Brand:Caterpillar
Quantity:5

Send Inquiry

SPECIFICATION

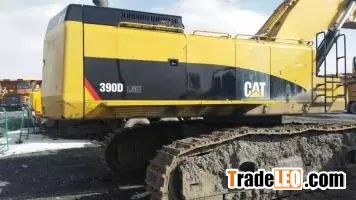

Brand: CATERPILLAR 390D
operation weight(kg):86190
Bucket capacity(m3):4.6
The movable arm length (mm) :8400
Arm length(mm):4400
Country of origin:Japan

2, PERFORMANCE
Rotary speed(rpm):5.9
Moving speed (Km/h) :4.5
Bucket digging force(KN):363
Bucket rod digging force(KN):276

3, ENGINE:
Engine model:CAT C18 ACERT
Rated engine power(kw/rpm):390
Displacement(L):18.1

4, OIL CAPACITY

Fuel tank(L):1240
The hydraulic system (L) :955
Engine oil replacement quantity(L):65
Cooling liquid (L) :101

5, MAIN SIZE(mm)
Transportation size(mm)(Lenth x Width x Height):14700x4260x5290
Cab height(mm):3760
The total length of the track (mm) :5840
Crawler plate width (mm) :4260
Track width (mm) :2750
Minimum ground clearance(mm):900

6, OPERATING RANGE
Maximum digging radius (mm) :14690
Maximum digging depth(mm):9660
maximum dump clearance(mm):9270
maximum vertical digging depth(mm):6850
